LOR descriptors and sinogram definition

In a scanner with “cylindrical symmetry”, all possible lines of response (LORs) between two LOR endpoints can be sorted into a sinogram containing a radial, view and plane dimension. This example shows how this can be done using the RegularPolygonPETLORDescriptor

Tip

parallelproj is python array API compatible meaning it supports different array backends (e.g. numpy, cupy, torch, …) and devices (CPU or GPU). Choose your preferred array API xp and device dev below.

https://mybinder.org/badge_logo.svg
20 import array_api_compat.numpy as xp
21
22 # import array_api_compat.cupy as xp
23 # import array_api_compat.torch as xp
24
25 import parallelproj
26 import matplotlib.pyplot as plt
27
28 # choose a device (CPU or CUDA GPU)
29 if "numpy" in xp.__name__:
30     # using numpy, device must be cpu
31     dev = "cpu"
32 elif "cupy" in xp.__name__:
33     # using cupy, only cuda devices are possible
34     dev = xp.cuda.Device(0)
35 elif "torch" in xp.__name__:
36     # using torch valid choices are 'cpu' or 'cuda'
37     dev = "cuda"

setup a small regular polygon PET scanner with 5 rings (polygons)

43 num_rings = 5
44 scanner = parallelproj.RegularPolygonPETScannerGeometry(
45     xp,
46     dev,
47     radius=65.0,
48     num_sides=12,
49     num_lor_endpoints_per_side=4,
50     lor_spacing=8.0,
51     ring_positions=xp.linspace(-8, 8, num_rings),
52     symmetry_axis=1,
53 )

Defining a sinogram using an LOR descriptor

RegularPolygonPETLORDescriptor can be used to order all possible combinations of LOR endpoints into a sinogram with a radial, view and plane dimension.

max_ring_difference defines the maximum ring (polygon) difference between of a valid LOR and radial_trim defines the number of radial bins to be trimmed from the sinogram edges.

sinogram_order of type SinogramSpatialAxisOrder defines the order of the sinogram dimensions (e.g. RVP -> [radial, view, plane], PRV -> [plane, radial, view])

68 lor_desc1 = parallelproj.RegularPolygonPETLORDescriptor(
69     scanner,
70     radial_trim=10,
71     max_ring_difference=2,
72     sinogram_order=parallelproj.SinogramSpatialAxisOrder.RVP,
73 )
74
75 print(lor_desc1)
76 print(f"sinogram order: {lor_desc1.sinogram_order.name}")
77 print(f"sinogram shape: {lor_desc1.spatial_sinogram_shape}")
78 print(
79     f"num rad: {lor_desc1.num_rad}  num views: {lor_desc1.num_views}  num planes: {lor_desc1.num_planes}"
80 )
81 print(
82     f"radial axis num: {lor_desc1.radial_axis_num}  view axis num: {lor_desc1.view_axis_num}  plane axis num: {lor_desc1.plane_axis_num}"
83 )
RegularPolygonPETLORDescriptor with spatial sinogram shape (29R, 24V, 19P)
sinogram order: RVP
sinogram shape: (29, 24, 19)
num rad: 29  num views: 24  num planes: 19
radial axis num: 0  view axis num: 1  plane axis num: 2

Define a 2nd LOR descriptor with sinogram order “PRV”

 88 lor_desc2 = parallelproj.RegularPolygonPETLORDescriptor(
 89     scanner,
 90     radial_trim=10,
 91     max_ring_difference=2,
 92     sinogram_order=parallelproj.SinogramSpatialAxisOrder.PRV,
 93 )
 94
 95 print(lor_desc2)
 96 print(f"sinogram order: {lor_desc2.sinogram_order.name}")
 97 print(f"sinogram shape: {lor_desc2.spatial_sinogram_shape}")
 98 print(
 99     f"num rad: {lor_desc2.num_rad}  num views: {lor_desc2.num_views}  num planes: {lor_desc2.num_planes}"
100 )
101 print(
102     f"radial axis num: {lor_desc2.radial_axis_num}  view axis num: {lor_desc2.view_axis_num}  plane axis num: {lor_desc2.plane_axis_num}"
103 )
RegularPolygonPETLORDescriptor with spatial sinogram shape (19P, 29R, 24V)
sinogram order: PRV
sinogram shape: (19, 29, 24)
num rad: 29  num views: 24  num planes: 19
radial axis num: 1  view axis num: 2  plane axis num: 0

Obtaining world coordinates of LOR start and endpoints

Every LOR is defined by two LOR endpoints. RegularPolygonPETLORDescriptor.get_lor_coordinates() can be used to to obtain the 3 world coordinates of them (for all views or a subset of views).

114 lor_start_points1, lor_end_points1 = lor_desc1.get_lor_coordinates()
115 print(lor_start_points1.shape, lor_end_points1.shape)
116
117 # print the start and end coordinates of the LOR corresponding to the 1st view
118 # the 2nd plane and the 3rd radial bin
119 print(lor_start_points1[2, 0, 1, :])
120 print(lor_end_points1[2, 0, 1, :])
(29, 24, 19, 3) (29, 24, 19, 3)
[54.29165 -4.      35.9641 ]
[ 29.03592   -4.       -58.291637]

Do the same for the 2nd LOR descriptor that uses sinogram order “PRV” The indexing has to be different compared to “RVP” to get the same LOR.

126 lor_start_points2, lor_end_points2 = lor_desc2.get_lor_coordinates()
127 print(lor_start_points2.shape, lor_end_points2.shape)
128
129 # print the start and end coordinates of the LOR corresponding to the 1st view
130 # the 2nd plane and the 3rd radial bin
131 print(lor_start_points2[1, 2, 0, :])
132 print(lor_end_points2[1, 2, 0, :])
(19, 29, 24, 3) (19, 29, 24, 3)
[54.29165 -4.      35.9641 ]
[ 29.03592   -4.       -58.291637]

Definition of plane numbers

The plane number definition corresponds to a span 1 Michelogram.

140 for i in range(lor_desc1.num_planes):
141     st_pl = lor_desc1.start_plane_index[i]
142     end_pl = lor_desc1.end_plane_index[i]
143     print(
144         f"plane num: {i:02} - start ring {st_pl} - end ring {end_pl} - ring diff. {(end_pl-st_pl):>2}"
145     )
plane num: 00 - start ring 0 - end ring 0 - ring diff.  0
plane num: 01 - start ring 1 - end ring 1 - ring diff.  0
plane num: 02 - start ring 2 - end ring 2 - ring diff.  0
plane num: 03 - start ring 3 - end ring 3 - ring diff.  0
plane num: 04 - start ring 4 - end ring 4 - ring diff.  0
plane num: 05 - start ring 0 - end ring 1 - ring diff.  1
plane num: 06 - start ring 1 - end ring 2 - ring diff.  1
plane num: 07 - start ring 2 - end ring 3 - ring diff.  1
plane num: 08 - start ring 3 - end ring 4 - ring diff.  1
plane num: 09 - start ring 1 - end ring 0 - ring diff. -1
plane num: 10 - start ring 2 - end ring 1 - ring diff. -1
plane num: 11 - start ring 3 - end ring 2 - ring diff. -1
plane num: 12 - start ring 4 - end ring 3 - ring diff. -1
plane num: 13 - start ring 0 - end ring 2 - ring diff.  2
plane num: 14 - start ring 1 - end ring 3 - ring diff.  2
plane num: 15 - start ring 2 - end ring 4 - ring diff.  2
plane num: 16 - start ring 2 - end ring 0 - ring diff. -2
plane num: 17 - start ring 3 - end ring 1 - ring diff. -2
plane num: 18 - start ring 4 - end ring 2 - ring diff. -2

Visualize the defined LOR endpoints

RegularPolygonPETScannerGeometry.show_lor_endpoints() can be used to visualize the defined LOR endpoints. Note that a zig-zag sampling pattern is used to define a view.

155 fig = plt.figure(figsize=(16, 8), tight_layout=True)
156 ax1 = fig.add_subplot(121, projection="3d")
157 ax2 = fig.add_subplot(122, projection="3d")
158 scanner.show_lor_endpoints(ax1)
159 lor_desc1.show_views(
160     ax1,
161     views=xp.asarray([0], device=dev),
162     planes=xp.asarray([num_rings // 2], device=dev),
163     lw=0.5,
164     color="k",
165 )
166 ax1.set_title(f"view 0, plane {num_rings // 2}")
167 scanner.show_lor_endpoints(ax2)
168 lor_desc1.show_views(
169     ax2,
170     views=xp.asarray([lor_desc1.num_views // 2], device=dev),
171     planes=xp.asarray([lor_desc1.num_planes - 1], device=dev),
172     lw=0.5,
173     color="k",
174 )
175 ax2.set_title(f"view {lor_desc1.num_views // 2}, plane {lor_desc1.num_planes - 1}")
176 fig.show()

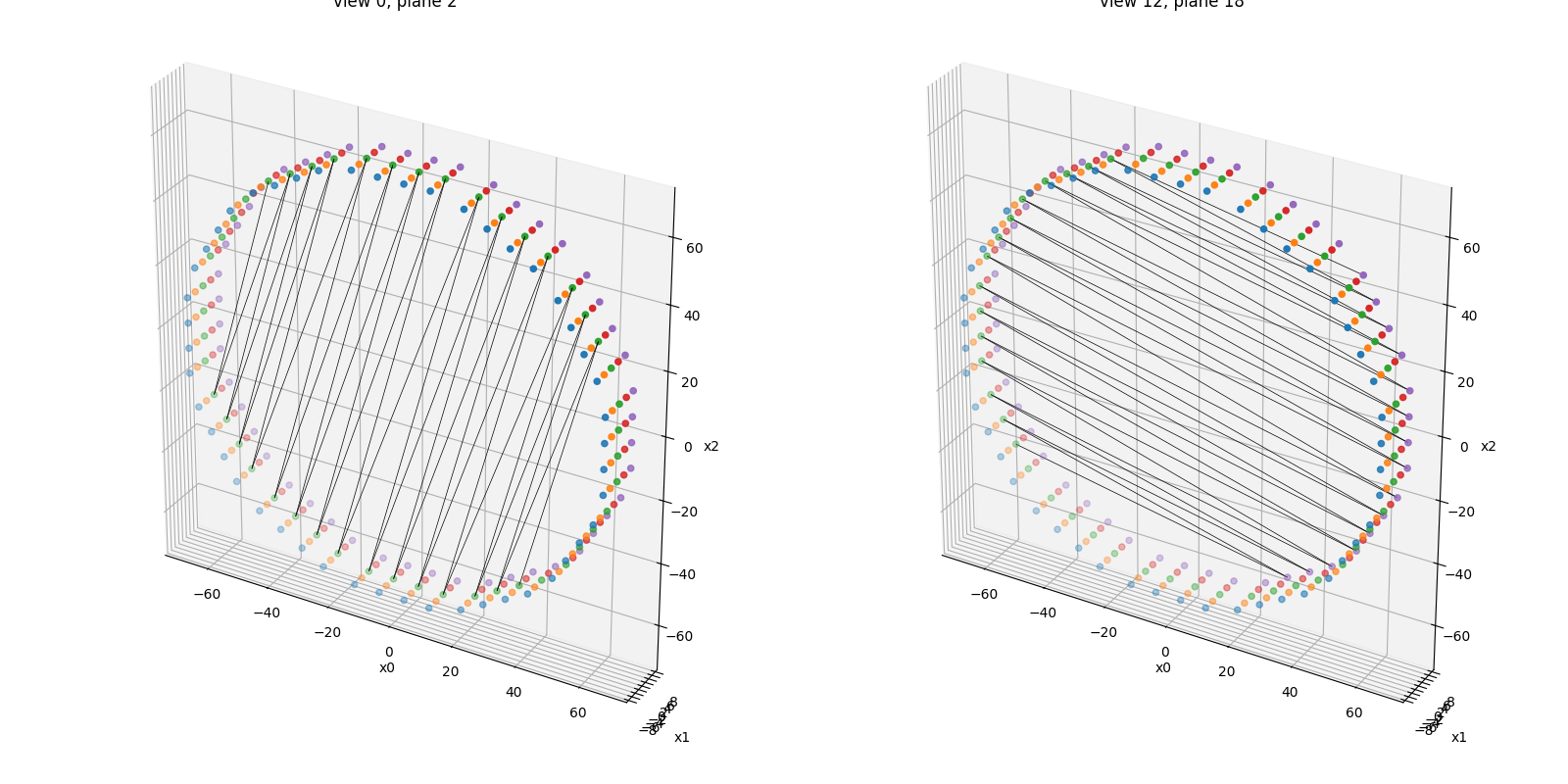

view 0, plane 2, view 12, plane 18

Defining sinograms in open PET scanner geometries

RegularPolygonPETLORDescriptor can also be used with “open” PET scanner geometries. Note, however, that the definition of “views” is not trivial due to the presence of “missing” sides (gaps). The view definition still uses the “zig-zag” sampling which leads to unconvential (very non-parallel) views in the sinogram as shown below.

188 open_scanner = parallelproj.RegularPolygonPETScannerGeometry(
189     xp,
190     dev,
191     radius=65.0,
192     num_sides=6,
193     num_lor_endpoints_per_side=4,
194     lor_spacing=8.0,
195     ring_positions=xp.linspace(-8, 8, num_rings),
196     symmetry_axis=1,
197     phis=(2 * xp.pi / 12) * xp.asarray([-1, 0, 1, 5, 6, 7]),
198 )
199
200 open_lor_desc = parallelproj.RegularPolygonPETLORDescriptor(
201     open_scanner,
202     radial_trim=1,
203     sinogram_order=parallelproj.SinogramSpatialAxisOrder.RVP,
204 )
205
206 fig2 = plt.figure(figsize=(16, 8), tight_layout=True)
207 ax2a = fig2.add_subplot(121, projection="3d")
208 ax2b = fig2.add_subplot(122, projection="3d")
209 open_scanner.show_lor_endpoints(ax2a)
210 open_lor_desc.show_views(
211     ax2a,
212     views=xp.asarray([0], device=dev),
213     planes=xp.asarray([num_rings // 2], device=dev),
214     lw=0.5,
215     color="k",
216 )
217 ax2a.set_title(f"view 0, plane {num_rings // 2}")
218 open_scanner.show_lor_endpoints(ax2b)
219 open_lor_desc.show_views(
220     ax2b,
221     views=xp.asarray([open_lor_desc.num_views // 2], device=dev),
222     planes=xp.asarray([num_rings // 2], device=dev),
223     lw=0.5,
224     color="k",
225 )
226 ax2b.set_title(f"view {open_lor_desc.num_views // 2}, plane {num_rings // 2}")
227 fig2.show()

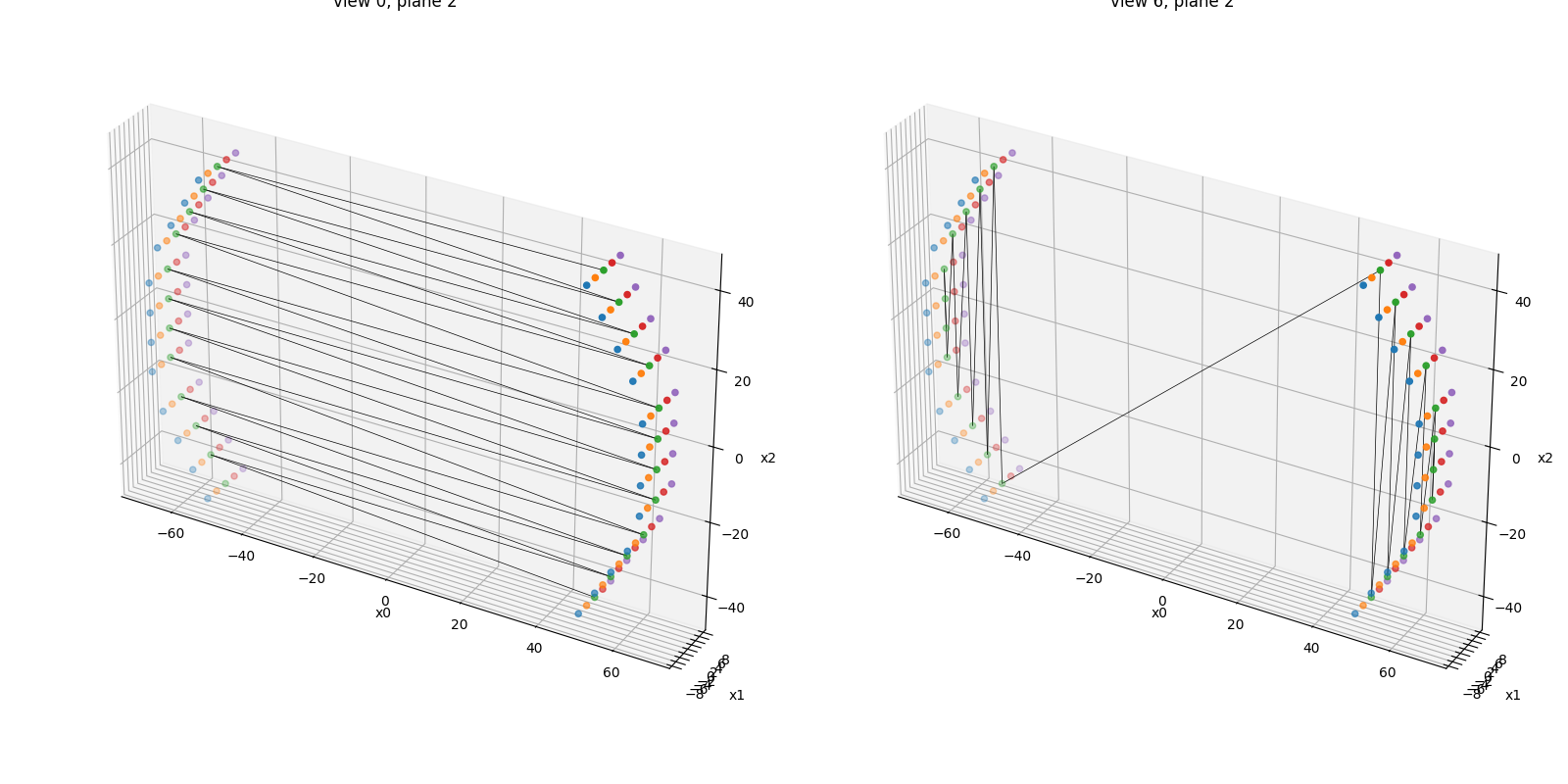

view 0, plane 2, view 6, plane 2

Total running time of the script: (0 minutes 1.209 seconds)
