2D non-TOF filtered back projection (FBP) of Poisson data

This example demonstrates the run 2D filtered back projection (FBP) on pre-corrected Poisson emission data.

Tip

parallelproj is python array API compatible meaning it supports different array backends (e.g. numpy, cupy, torch, …) and devices (CPU or GPU). Choose your preferred array API xp and device dev below.

from __future__ import annotations

import array_api_compat.numpy as xp

# import array_api_compat.cupy as xp
# import array_api_compat.torch as xp

import parallelproj
from array_api_compat import to_device
import array_api_compat.numpy as np
import matplotlib.pyplot as plt
from scipy.ndimage import gaussian_filter
from utils import RadonDisk, RadonObjectSequence

# choose a device (CPU or CUDA GPU)
if "numpy" in xp.__name__:
    # using numpy, device must be cpu
    dev = "cpu"
elif "cupy" in xp.__name__:
    # using cupy, only cuda devices are possible
    dev = xp.cuda.Device(0)
elif "torch" in xp.__name__:
    # using torch valid choices are 'cpu' or 'cuda'
    if parallelproj.cuda_present:
        dev = "cuda"
    else:
        dev = "cpu"

Input parameters

# add Poisson noise to the sinogram
add_noise = True
# total "prompt" counts of the emission sinogram
total_counts = 1e7
# sigma of the Gaussian filter to smooth sinogram in radial
# direction to simulate limited resolution
sino_res = 1.0
# linear attenuation coefficient of phantom in 1/cm
mu = 0.1
# number of MLEM iterations to run
num_iter = 50
# maximum angle of the sinogram in radians
phi_max = xp.pi
# undersampling factor of the sinogram in the angular direction
phi_undersampling_factor = 1

Setup of arrays

num_rad = 201
num_phi = int(0.5 * num_rad * xp.pi * (phi_max / xp.pi)) + 1
num_phi = num_phi // phi_undersampling_factor

r = xp.linspace(-30, 30, num_rad, device=dev, dtype=xp.float32)
phi = xp.linspace(0, phi_max, num_phi, endpoint=False, device=dev, dtype=xp.float32)
R, PHI = xp.meshgrid(r, phi, indexing="ij")
X0, X1 = xp.meshgrid(r, r, indexing="ij")
x = xp.linspace(float(xp.min(r)), float(xp.max(r)), 1001, device=dev, dtype=xp.float32)
X0hr, X1hr = xp.meshgrid(x, x, indexing="ij")

print(f"num rad:   {num_rad}")
print(f"phi max:   {180*phi_max/xp.pi:.2f} deg")
print(f"delta phi: {180*float(phi[1]-phi[0])/xp.pi:.2f} deg")

num rad:   201
phi max:   180.00 deg
delta phi: 0.57 deg

Define an object with known Radon transform

We setup a combination of (scaled) disks as a simple phantom.

disk0 = RadonDisk(xp, dev, 8.0)
disk0.amplitude = 1.0
disk0.s0 = 3.0

disk1 = RadonDisk(xp, dev, 2.0)
disk1.amplitude = 0.5
disk1.x1_offset = 4.67

disk2 = RadonDisk(xp, dev, 1.4)
disk2.amplitude = -0.5
disk2.x0_offset = -10.0

disk3 = RadonDisk(xp, dev, 0.93)
disk3.amplitude = -0.5
disk3.x1_offset = -4.67

disk4 = RadonDisk(xp, dev, 0.67)
disk4.amplitude = 1.0
disk4.x1_offset = -4.67

radon_object = RadonObjectSequence([disk0, disk1, disk2, disk3, disk4])

fig, ax = plt.subplots(tight_layout=True)
ax.imshow(
    parallelproj.to_numpy_array(radon_object.values(X0hr, X1hr).T),
    cmap="Greys",
    origin="lower",
)
ax.set_xlabel(r"$x_0$")
ax.set_ylabel(r"$x_1$")
ax.set_title("true object", fontsize="medium")
fig.show()

Calculate the radon transform of the object

rt_transform = radon_object.radon_transform(R, PHI)

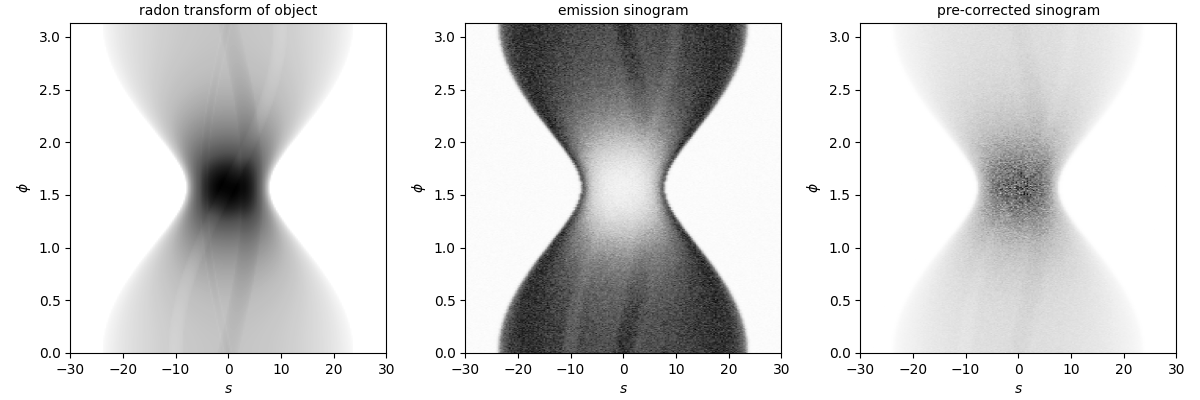

Simulate the effect of attenuation and Poisson noise

sens_sino = xp.exp(-mu * disk0.radon_transform(R, PHI))
contam = xp.full(
    rt_transform.shape, 0.1 * xp.mean(sens_sino * rt_transform), device=dev
)

emis_sino = sens_sino * rt_transform

if sino_res > 0:
    for i in range(num_phi):
        emis_sino[:, i] = xp.asarray(
            gaussian_filter(
                parallelproj.to_numpy_array(emis_sino[:, i]),
                sino_res,
            ),
            device=dev,
        )

emis_sino = emis_sino + contam

count_fac = total_counts / float(xp.sum(emis_sino))

emis_sino *= count_fac
contam *= count_fac

if add_noise:
    emis_sino = xp.asarray(
        np.random.poisson(parallelproj.to_numpy_array(emis_sino)).astype(np.float32),
        device=dev,
    )

# pre-correct sinogram - needed to run FBP
pre_corrected_sino = (emis_sino - contam) / sens_sino

ext_sino = [float(xp.min(r)), float(xp.max(r)), float(xp.min(phi)), float(xp.max(phi))]

fig, ax = plt.subplots(1, 3, figsize=(12, 4), tight_layout=True)
ax[0].imshow(
    parallelproj.to_numpy_array(rt_transform.T),
    cmap="Greys",
    aspect=20,
    extent=ext_sino,
    origin="lower",
)
ax[1].imshow(
    parallelproj.to_numpy_array(emis_sino.T),
    cmap="Greys",
    aspect=20,
    extent=ext_sino,
    origin="lower",
)
ax[2].imshow(
    parallelproj.to_numpy_array(pre_corrected_sino.T),
    cmap="Greys",
    aspect=20,
    extent=ext_sino,
    origin="lower",
)

for axx in ax.ravel():
    axx.set_xlabel(r"$s$")
    axx.set_ylabel(r"$\phi$")

ax[0].set_title("radon transform of object", fontsize="medium")
ax[1].set_title("emission sinogram", fontsize="medium")
ax[2].set_title("pre-corrected sinogram", fontsize="medium")
fig.show()

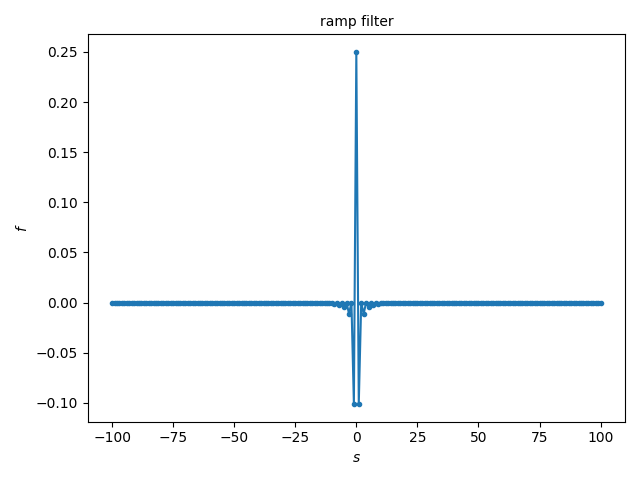

Setup of the ramp filter

n_filter = r.shape[0]
r_shift = xp.arange(n_filter, device=dev, dtype=xp.float64) - n_filter // 2
f = xp.zeros(n_filter, device=dev, dtype=xp.float64)
f[r_shift != 0] = -1 / (xp.pi**2 * r_shift[r_shift != 0] ** 2)
f[(r_shift % 2) == 0] = 0
f[r_shift == 0] = 0.25

fig, ax = plt.subplots(tight_layout=True)
ax.plot(r_shift, f, ".-")
ax.set_xlabel(r"$s$")
ax.set_ylabel(r"$f$")
ax.set_title("ramp filter", fontsize="medium")
fig.show()

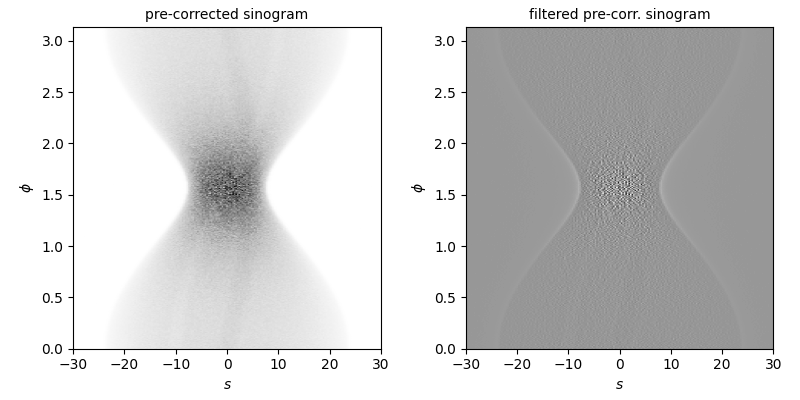

Ramp filtering of the pre-corrected emission sinogram

filtered_pre_corrected_sino = 1.0 * pre_corrected_sino

for i in range(num_phi):
    filtered_pre_corrected_sino[:, i] = xp.asarray(
        np.convolve(
            parallelproj.to_numpy_array(filtered_pre_corrected_sino[:, i]),
            f,
            mode="same",
        ),
        device=dev,
    )

fig, ax = plt.subplots(1, 2, figsize=(8, 4), tight_layout=True)
ax[0].imshow(
    parallelproj.to_numpy_array(pre_corrected_sino.T),
    cmap="Greys",
    aspect=20,
    extent=ext_sino,
    origin="lower",
)
ax[1].imshow(
    parallelproj.to_numpy_array(filtered_pre_corrected_sino.T),
    cmap="Greys",
    aspect=20,
    extent=ext_sino,
    origin="lower",
)
for axx in ax.ravel():
    axx.set_xlabel(r"$s$")
    axx.set_ylabel(r"$\phi$")

ax[0].set_title("pre-corrected sinogram", fontsize="medium")
ax[1].set_title("filtered pre-corr. sinogram", fontsize="medium")
fig.show()

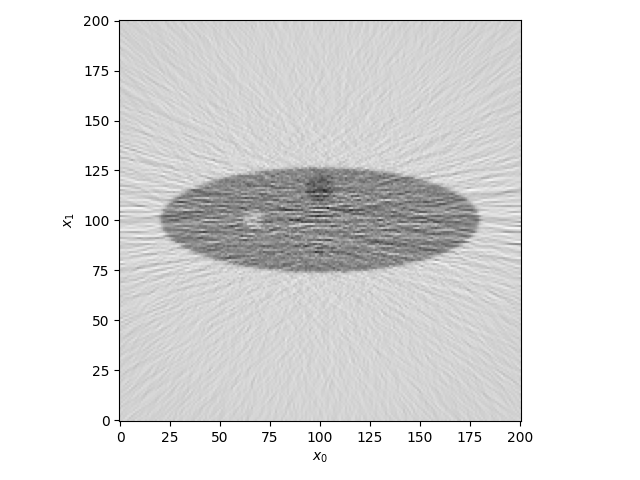

Define a projector and run filtered back projection (FBP)

proj = parallelproj.ParallelViewProjector2D(
    (num_rad, num_rad),
    r,
    -phi,
    2 * float(xp.max(r)),
    (float(xp.min(r)), float(xp.min(r))),
    (float(r[1] - r[0]), float(r[1] - r[0])),
)

filtered_back_proj = proj.adjoint(filtered_pre_corrected_sino)

fig, ax = plt.subplots(tight_layout=True)
ax.imshow(
    parallelproj.to_numpy_array(filtered_back_proj).T, cmap="Greys", origin="lower"
)
ax.set_xlabel(r"$x_0$")
ax.set_ylabel(r"$x_1$")
fig.show()

Run iterative MLEM reconstruction for comparison

x_mlem = xp.ones((num_rad, num_rad), device=dev, dtype=xp.float32)
sens_img = proj.adjoint(sens_sino)

for i in range(num_iter):
    exp = sens_sino * proj(x_mlem) + contam
    ratio = emis_sino / exp
    ratio_back = proj.adjoint(sens_sino * ratio)

    update_img = ratio_back / sens_img
    x_mlem *= update_img

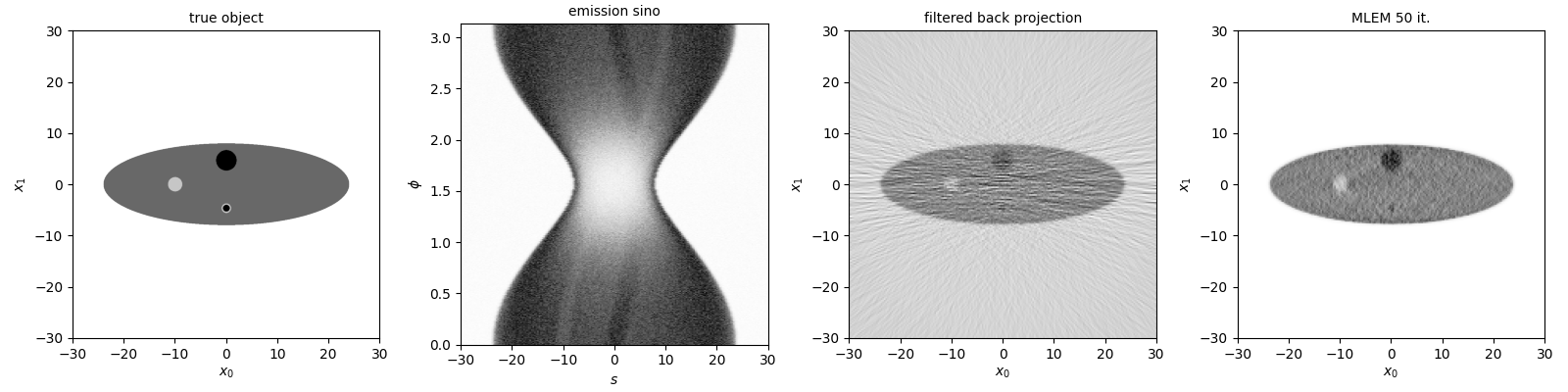

Visualize the results

ext_img = [float(xp.min(r)), float(xp.max(r)), float(xp.min(r)), float(xp.max(r))]

fig, ax = plt.subplots(1, 4, figsize=(16, 4), tight_layout=True)
ax[0].imshow(
    parallelproj.to_numpy_array(radon_object.values(X0hr, X1hr).T),
    cmap="Greys",
    extent=ext_img,
    origin="lower",
)
ax[1].imshow(
    parallelproj.to_numpy_array(emis_sino.T),
    cmap="Greys",
    aspect=20,
    extent=ext_sino,
    origin="lower",
)
ax[2].imshow(
    parallelproj.to_numpy_array(filtered_back_proj.T),
    cmap="Greys",
    extent=ext_img,
    origin="lower",
)
ax[3].imshow(
    parallelproj.to_numpy_array(x_mlem.T),
    cmap="Greys",
    extent=ext_img,
    origin="lower",
)
ax[0].set_xlabel(r"$x_0$")
ax[0].set_ylabel(r"$x_1$")
ax[1].set_xlabel(r"$s$")
ax[1].set_ylabel(r"$\phi$")
ax[2].set_xlabel(r"$x_0$")
ax[2].set_ylabel(r"$x_1$")
ax[3].set_xlabel(r"$x_0$")
ax[3].set_ylabel(r"$x_1$")

ax[0].set_title("true object", fontsize="medium")
ax[1].set_title("emission sino", fontsize="medium")
ax[2].set_title("filtered back projection", fontsize="medium")
ax[3].set_title(f"MLEM {num_iter} it.", fontsize="medium")

fig.show()
