LOR descriptors and sinogram definition

In a scanner with “cylindrical symmetry”, all possible lines of response (LORs) between two LOR endpoints can be sorted into a sinogram containing a radial, view and plane dimension. This example shows how this can be done using the RegularPolygonPETLORDescriptor

import numpy as np
import parallelproj.pet_scanners
import parallelproj.pet_lors
import matplotlib.pyplot as plt

from array_utils import suggest_array_backend_and_device

# To use a specific backend and/or device, replace the None arguments, e.g.:
#   xp, dev = suggest_array_backend_and_device(backend="numpy", dev="cpu") or by setting xp and dev manually
xp, dev = suggest_array_backend_and_device(None, None)

Using array API: array_api_compat.torch, device: cpu

def _central_plane_seg0(
    lor_desc: parallelproj.pet_lors.RegularPolygonPETLORDescriptor,
) -> int:
    """Return the plane index of the central plane belonging to segment 0."""
    seg = np.asarray(lor_desc.plane_segment.tolist())
    idx = np.where(seg == 0)[0]
    return int(idx[len(idx) // 2])


def _last_plane_highest_seg(
    lor_desc: parallelproj.pet_lors.RegularPolygonPETLORDescriptor,
) -> int:
    """Return the last plane index belonging to the highest-magnitude segment."""
    seg = np.asarray(lor_desc.plane_segment.tolist())
    idx = np.where(np.abs(seg) == int(np.abs(seg).max()))[0]
    return int(idx[-1])

setup a small regular polygon PET scanner with 5 rings (polygons)

num_rings = 11
scanner = parallelproj.pet_scanners.RegularPolygonPETScannerGeometry(
    xp,
    dev,
    radius=65.0,
    num_sides=12,
    num_lor_endpoints_per_side=4,
    lor_spacing=8.0,
    ring_positions=2 * num_rings * xp.linspace(-1, 1, num_rings, device=dev),
    symmetry_axis=1,
)

Defining a sinogram using an LOR descriptor

RegularPolygonPETLORDescriptor can be used to order all possible combinations of LOR endpoints into a sinogram with a radial, view and plane dimension.

max_ring_difference defines the maximum ring (polygon) difference between of a valid LOR and radial_trim defines the number of radial bins to be trimmed from the sinogram edges.

sinogram_order of type SinogramSpatialAxisOrder defines the order of the sinogram dimensions (e.g. RVP -> [radial, view, plane], PRV -> [plane, radial, view])

lor_desc1 = parallelproj.pet_lors.RegularPolygonPETLORDescriptor(
    scanner,
    radial_trim=10,
    sinogram_order=parallelproj.pet_lors.SinogramSpatialAxisOrder.RVP,
)

print(lor_desc1)
print(f"sinogram order: {lor_desc1.sinogram_order.name}")
print(f"sinogram shape: {lor_desc1.spatial_sinogram_shape}")
print(
    f"num rad: {lor_desc1.num_rad}  num views: {lor_desc1.num_views}  num planes: {lor_desc1.num_planes}"
)
print(
    f"radial axis num: {lor_desc1.radial_axis_num}  view axis num: {lor_desc1.view_axis_num}  plane axis num: {lor_desc1.plane_axis_num}"
)

RegularPolygonPETLORDescriptor with spatial sinogram shape (29R, 24V, 121P)
sinogram order: RVP
sinogram shape: (29, 24, 121)
num rad: 29  num views: 24  num planes: 121
radial axis num: 0  view axis num: 1  plane axis num: 2

Define a 2nd LOR descriptor with sinogram order “PRV”

lor_desc2 = parallelproj.pet_lors.RegularPolygonPETLORDescriptor(
    scanner,
    radial_trim=10,
    sinogram_order=parallelproj.pet_lors.SinogramSpatialAxisOrder.PRV,
)

print(lor_desc2)
print(f"sinogram order: {lor_desc2.sinogram_order.name}")
print(f"sinogram shape: {lor_desc2.spatial_sinogram_shape}")
print(
    f"num rad: {lor_desc2.num_rad}  num views: {lor_desc2.num_views}  num planes: {lor_desc2.num_planes}"
)
print(
    f"radial axis num: {lor_desc2.radial_axis_num}  view axis num: {lor_desc2.view_axis_num}  plane axis num: {lor_desc2.plane_axis_num}"
)

RegularPolygonPETLORDescriptor with spatial sinogram shape (121P, 29R, 24V)
sinogram order: PRV
sinogram shape: (121, 29, 24)
num rad: 29  num views: 24  num planes: 121
radial axis num: 1  view axis num: 2  plane axis num: 0

Obtaining world coordinates of LOR start and endpoints

Every LOR is defined by two LOR endpoints. RegularPolygonPETLORDescriptor.get_lor_coordinates() can be used to to obtain the 3 world coordinates of them (for all views or a subset of views).

lor_start_points1, lor_end_points1 = lor_desc1.get_lor_coordinates()
print(lor_start_points1.shape, lor_end_points1.shape)

# print the start and end coordinates of the LOR corresponding to the 1st view
# the 2nd plane and the 3rd radial bin
print(lor_start_points1[2, 0, 1, :])
print(lor_end_points1[2, 0, 1, :])

torch.Size([29, 24, 121, 3]) torch.Size([29, 24, 121, 3])
tensor([ 54.2916, -17.6000,  35.9641])
tensor([ 29.0359, -17.6000, -58.2916])

Do the same for the 2nd LOR descriptor that uses sinogram order “PRV” The indexing has to be different compared to “RVP” to get the same LOR.

lor_start_points2, lor_end_points2 = lor_desc2.get_lor_coordinates()
print(lor_start_points2.shape, lor_end_points2.shape)

# print the start and end coordinates of the LOR corresponding to the 1st view
# the 2nd plane and the 3rd radial bin
print(lor_start_points2[1, 2, 0, :])
print(lor_end_points2[1, 2, 0, :])

torch.Size([121, 29, 24, 3]) torch.Size([121, 29, 24, 3])
tensor([ 54.2916, -17.6000,  35.9641])
tensor([ 29.0359, -17.6000, -58.2916])

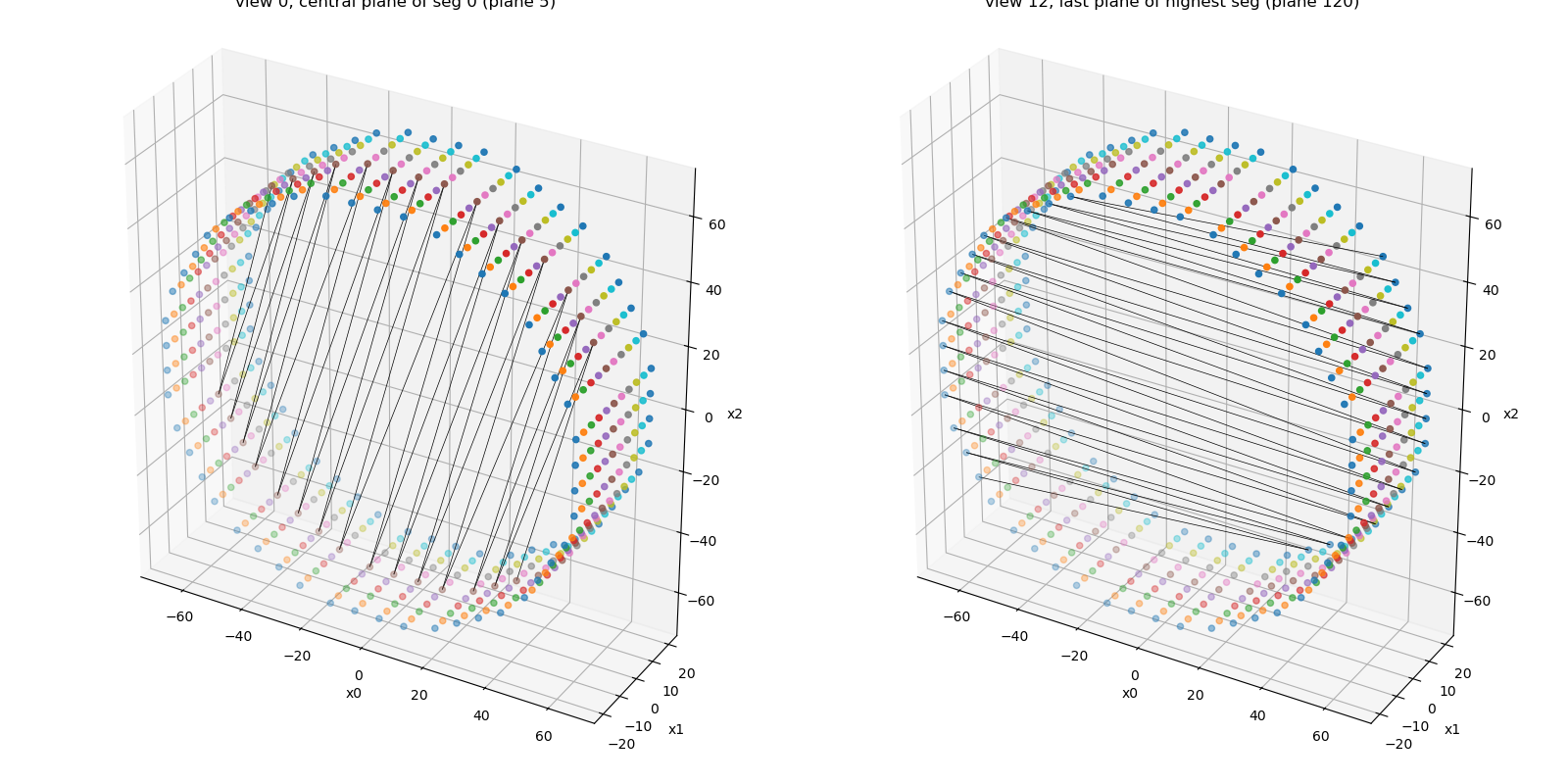

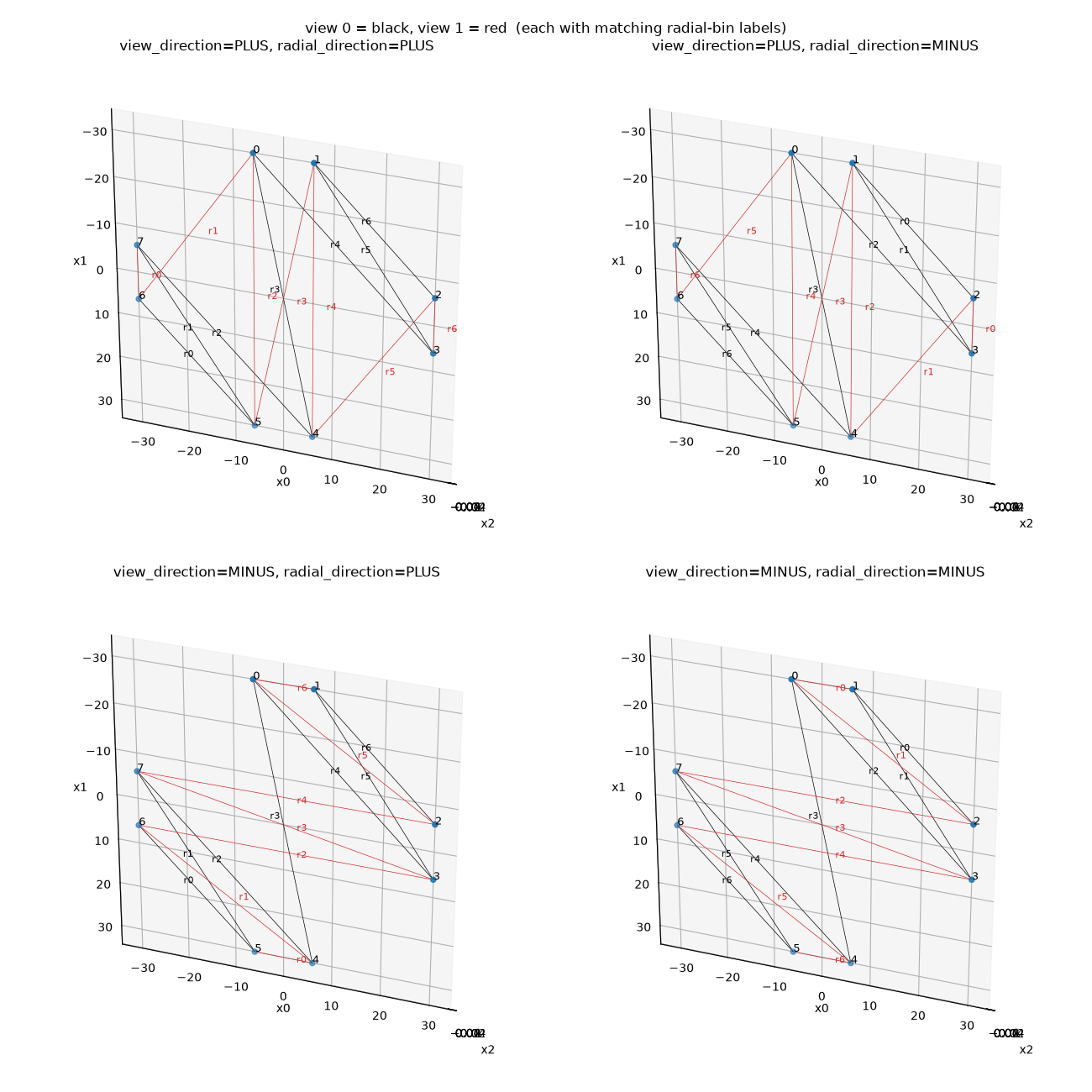

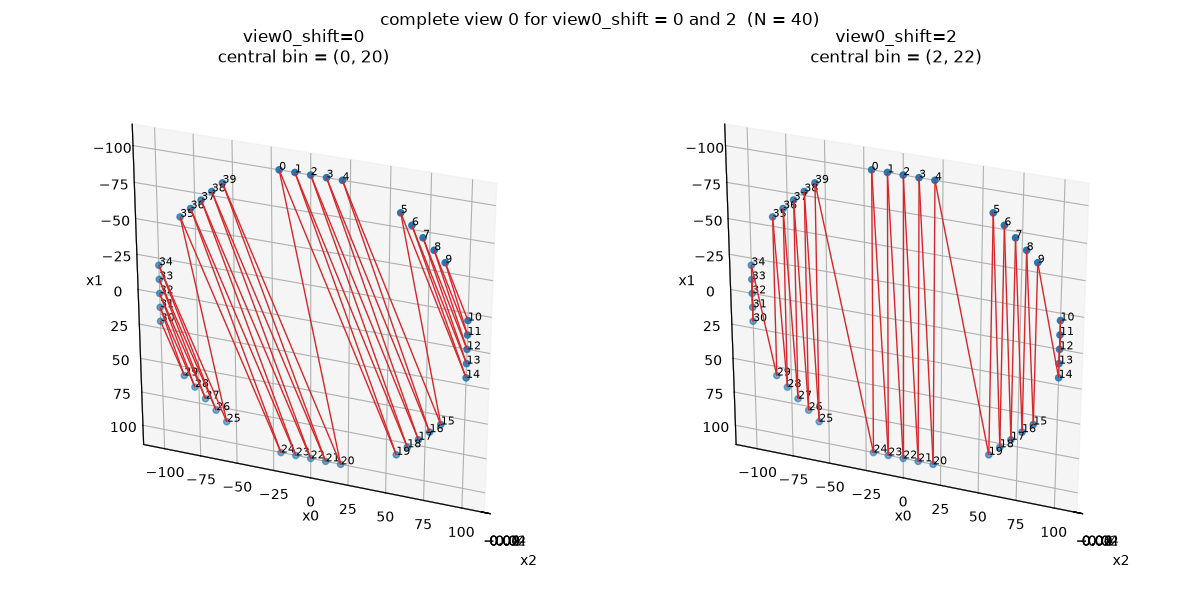

Visualize the defined LOR endpoints

RegularPolygonPETScannerGeometry.show_lor_endpoints() can be used to visualize the defined LOR endpoints. Note that a zig-zag sampling pattern is used to define a view.

_p0 = _central_plane_seg0(lor_desc1)
_ph = _last_plane_highest_seg(lor_desc1)

fig = plt.figure(figsize=(16, 8), tight_layout=True)
ax1 = fig.add_subplot(121, projection="3d")
ax2 = fig.add_subplot(122, projection="3d")
scanner.show_lor_endpoints(ax1)
lor_desc1.show_views(
    ax1,
    views=xp.asarray([0], device=dev),
    planes=xp.asarray([_p0], device=dev),
    lw=0.5,
    color="k",
)
ax1.set_title(f"view 0, central plane of seg 0 (plane {_p0})")
scanner.show_lor_endpoints(ax2)
lor_desc1.show_views(
    ax2,
    views=xp.asarray([lor_desc1.num_views // 2], device=dev),
    planes=xp.asarray([_ph], device=dev),
    lw=0.5,
    color="k",
)
ax2.set_title(
    f"view {lor_desc1.num_views // 2}, last plane of highest seg (plane {_ph})"
)
fig.show()

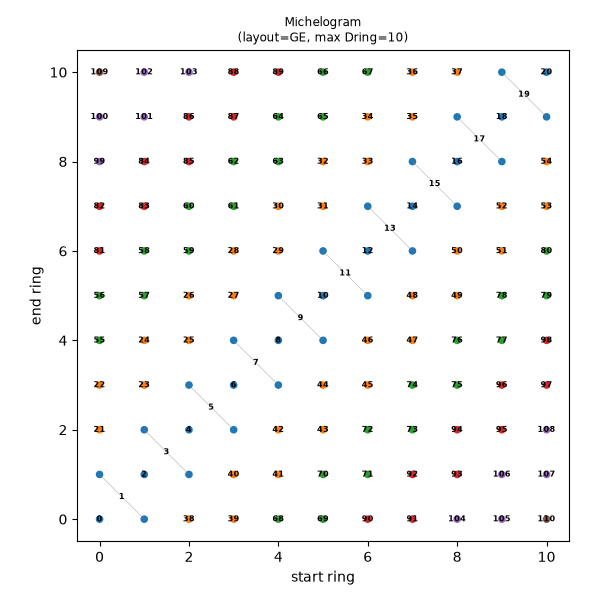

Michelogram for span-1 (no max ring diff)

fig_m0, ax_m0 = plt.subplots(1, 1, figsize=(6, 6), tight_layout=True)
lor_desc1.show_michelogram(ax_m0)
fig_m0.show()

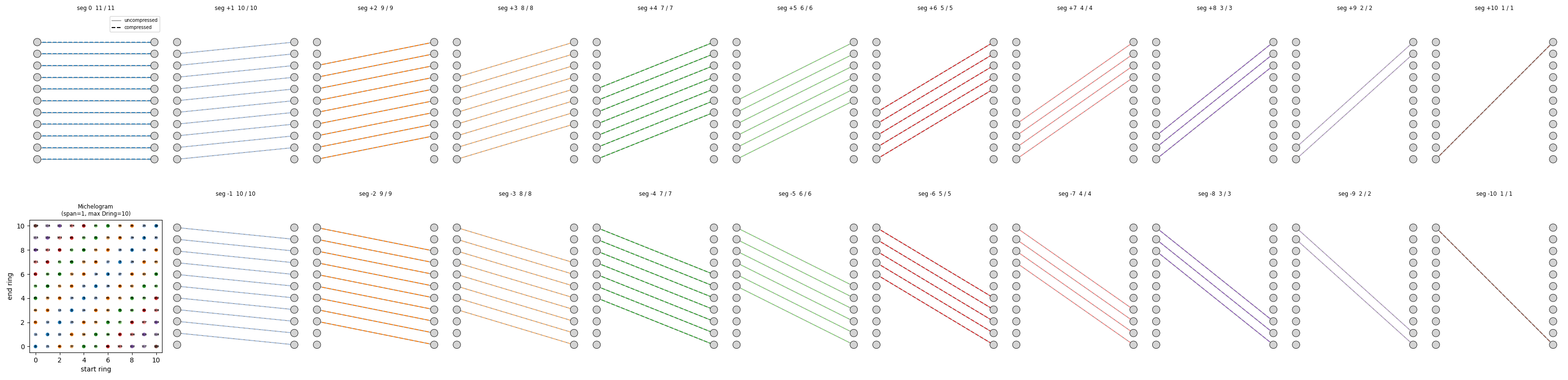

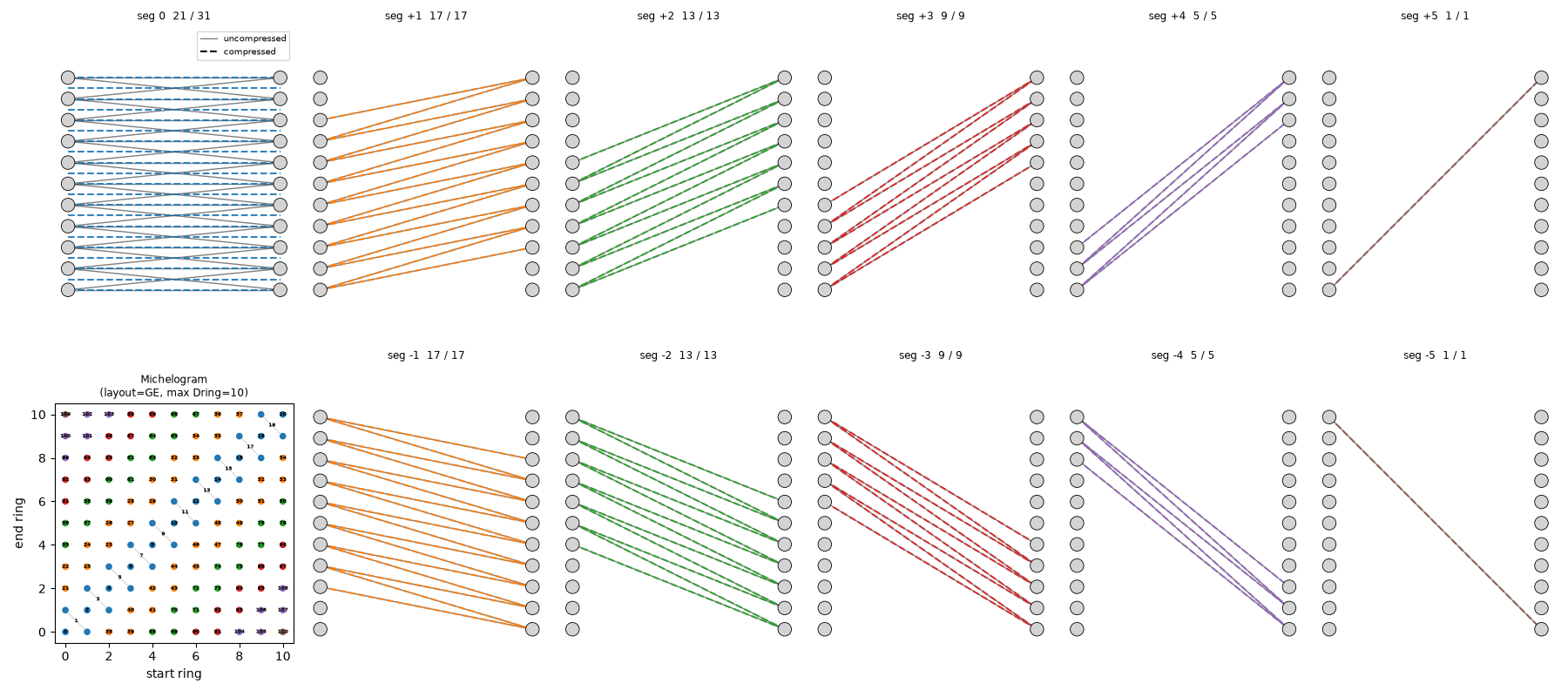

Segment side-view diagram for span-1 (no max ring diff)

fig_seg0 = lor_desc1.show_segment_lors()
fig_seg0.tight_layout()
fig_seg0.show()

Span-5 sinogram without max ring difference limitation

RegularPolygonPETLORDescriptor supports axial compression via the span parameter. With span=5 ring pairs whose ring difference falls in the same segment and share the same axial midpoint are merged into a single sinogram plane. Setting max_ring_difference=None (the default) includes all ring pairs.

span = 5

lor_desc_s5 = parallelproj.pet_lors.RegularPolygonPETLORDescriptor(
    scanner,
    parallelproj.pet_lors.Michelogram(
        scanner.num_rings, max_ring_difference=scanner.num_rings - 1, span=span
    ),
    radial_trim=10,
    sinogram_order=parallelproj.pet_lors.SinogramSpatialAxisOrder.RVP,
)

print(lor_desc_s5)
print(f"sinogram shape: {lor_desc_s5.spatial_sinogram_shape}")
print(f"num planes: {lor_desc_s5.num_planes}  (span={span}, no max ring diff)")

RegularPolygonPETLORDescriptor with spatial sinogram shape (29R, 24V, 61P)
sinogram shape: (29, 24, 61)
num planes: 61  (span=5, no max ring diff)

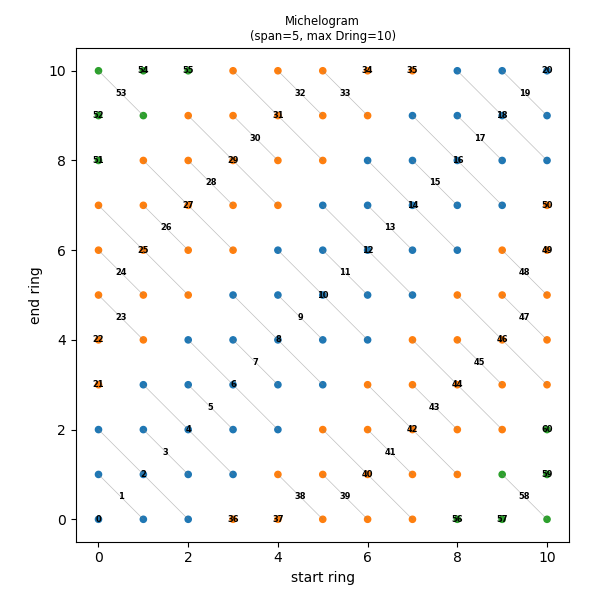

Michelogram for span-5 (no max ring diff)

fig_m1, ax_m1 = plt.subplots(1, 1, figsize=(6, 6), tight_layout=True)
lor_desc_s5.show_michelogram(ax_m1)
fig_m1.show()

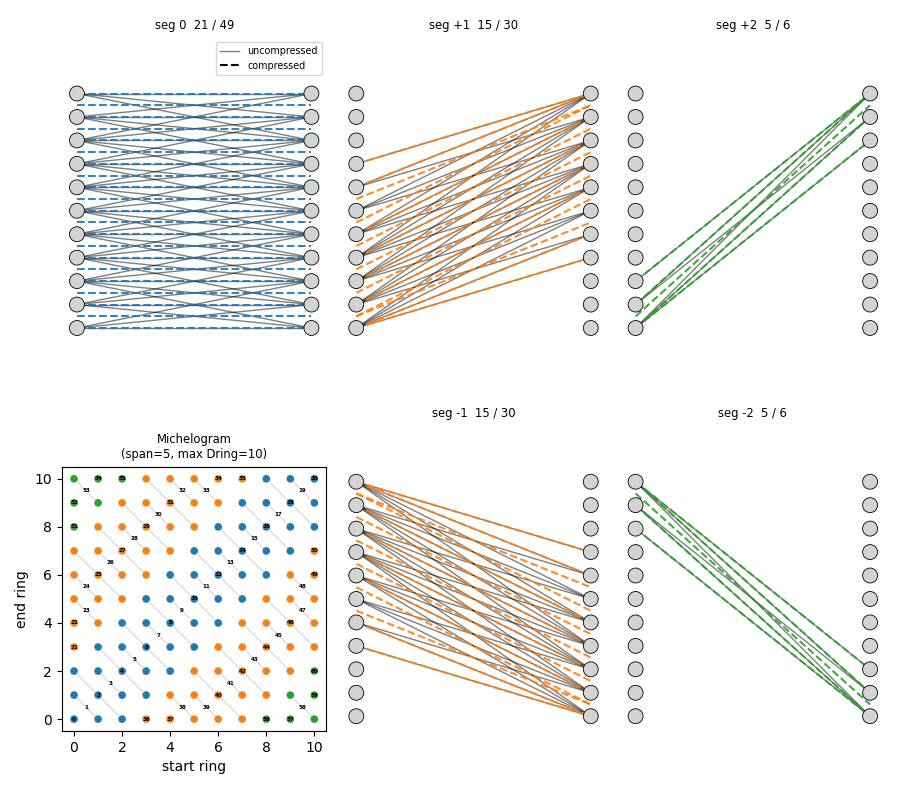

Segment side-view diagram for span-5 (no max ring diff)

fig_seg1 = lor_desc_s5.show_segment_lors()
fig_seg1.tight_layout()
fig_seg1.show()

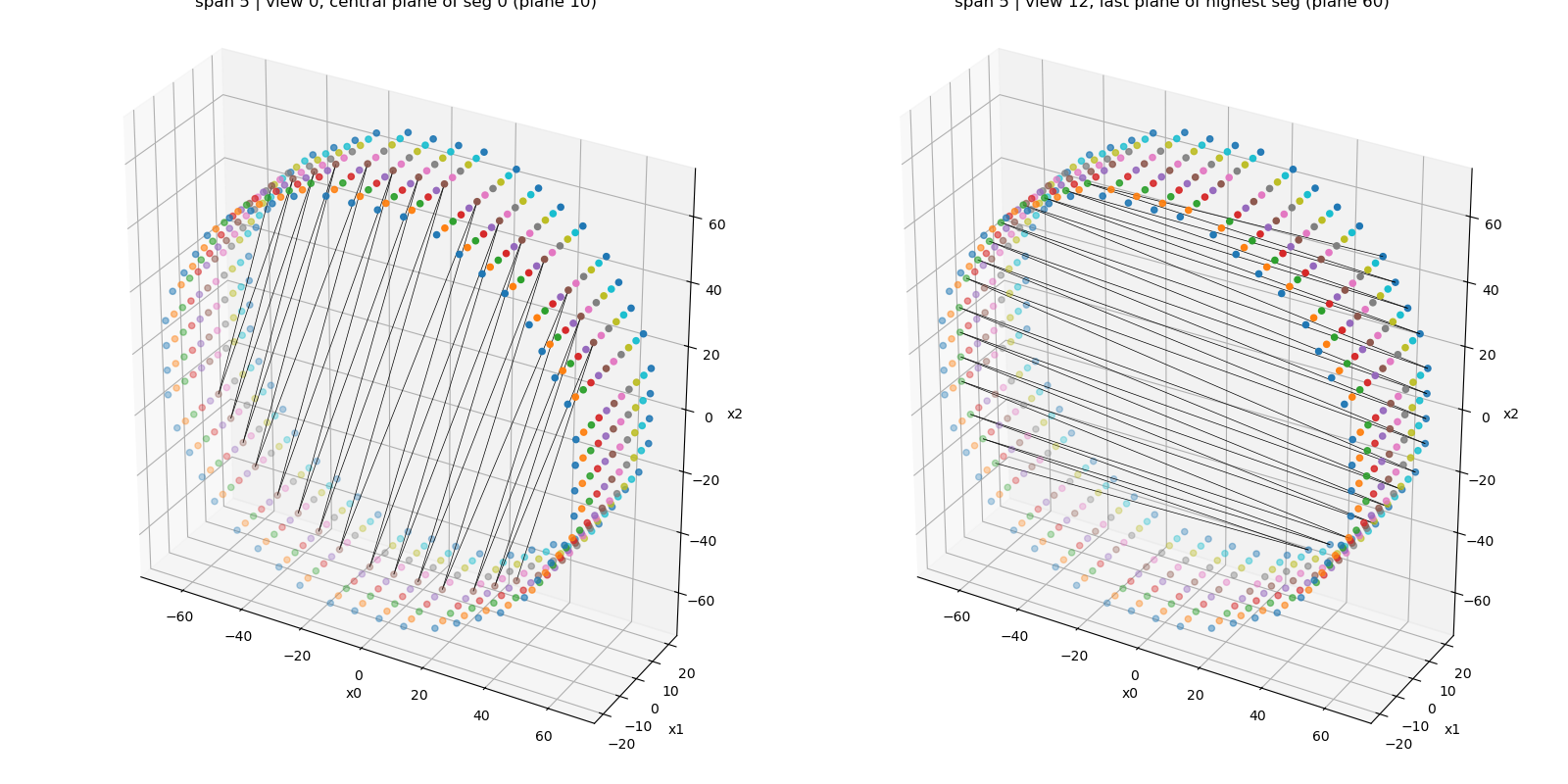

3D visualisation of two planes - span-5 (no max ring diff)

_p0_s5 = _central_plane_seg0(lor_desc_s5)
_ph_s5 = _last_plane_highest_seg(lor_desc_s5)

fig_3d1 = plt.figure(figsize=(16, 8), tight_layout=True)
ax3d1a = fig_3d1.add_subplot(121, projection="3d")
ax3d1b = fig_3d1.add_subplot(122, projection="3d")
scanner.show_lor_endpoints(ax3d1a)
lor_desc_s5.show_views(
    ax3d1a,
    views=xp.asarray([0], device=dev),
    planes=xp.asarray([_p0_s5], device=dev),
    lw=0.5,
    color="k",
)
ax3d1a.set_title(f"span {span} | view 0, central plane of seg 0 (plane {_p0_s5})")
scanner.show_lor_endpoints(ax3d1b)
lor_desc_s5.show_views(
    ax3d1b,
    views=xp.asarray([lor_desc_s5.num_views // 2], device=dev),
    planes=xp.asarray([_ph_s5], device=dev),
    lw=0.5,
    color="k",
)
ax3d1b.set_title(
    f"span {span} | view {lor_desc_s5.num_views // 2}, last plane of highest seg (plane {_ph_s5})"
)
fig_3d1.show()

Span-5 sinogram with max ring difference = 7

By additionally setting max_ring_difference=7 we restrict the included ring pairs, reducing the number of segments and sinogram planes compared to the unrestricted span-5 case above.

max_ring_difference = 7

lor_desc_s5_mrd9 = parallelproj.pet_lors.RegularPolygonPETLORDescriptor(
    scanner,
    parallelproj.pet_lors.Michelogram(
        scanner.num_rings, max_ring_difference=max_ring_difference, span=span
    ),
    radial_trim=10,
    sinogram_order=parallelproj.pet_lors.SinogramSpatialAxisOrder.RVP,
)

print(lor_desc_s5_mrd9)
print(f"sinogram shape: {lor_desc_s5_mrd9.spatial_sinogram_shape}")
print(
    f"num planes: {lor_desc_s5_mrd9.num_planes}  (span={span}, max ring diff={max_ring_difference})"
)

RegularPolygonPETLORDescriptor with spatial sinogram shape (29R, 24V, 51P)
sinogram shape: (29, 24, 51)
num planes: 51  (span=5, max ring diff=7)

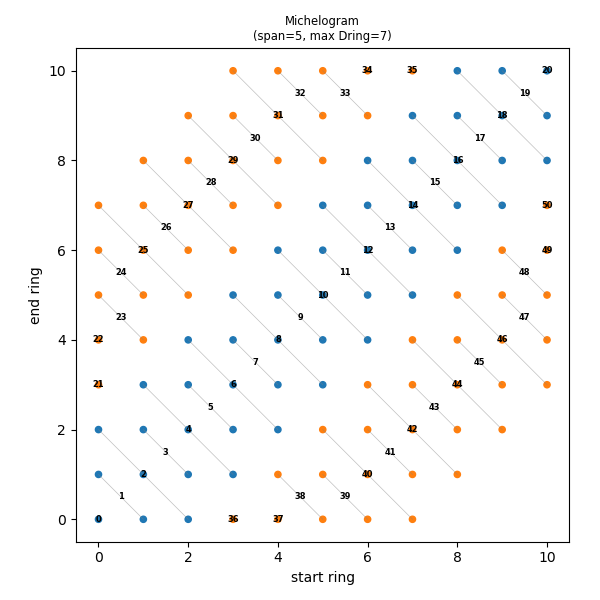

Michelogram for span-5 with max ring diff = 7

fig_m2, ax_m2 = plt.subplots(1, 1, figsize=(6, 6), tight_layout=True)
lor_desc_s5_mrd9.show_michelogram(ax_m2)
fig_m2.show()

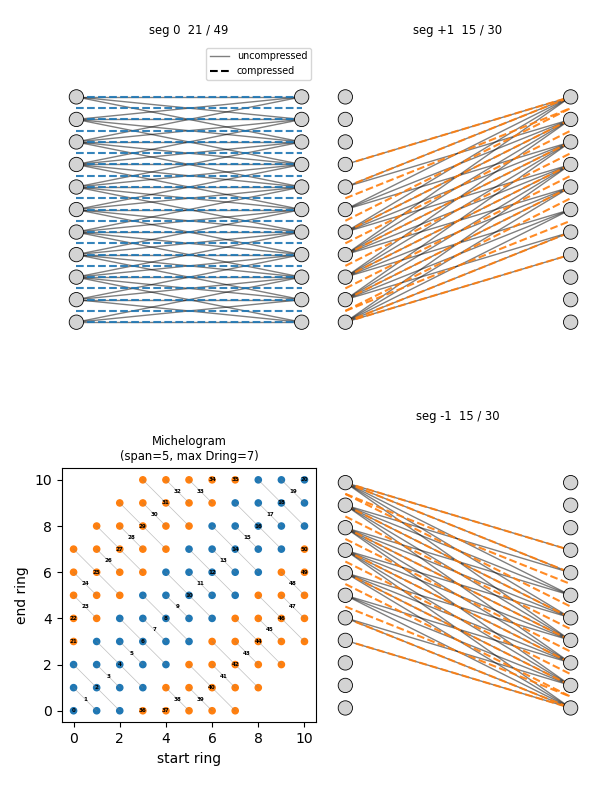

Segment side-view diagram for span-5 with max ring diff = 7

fig_seg2 = lor_desc_s5_mrd9.show_segment_lors()
fig_seg2.tight_layout()
fig_seg2.show()

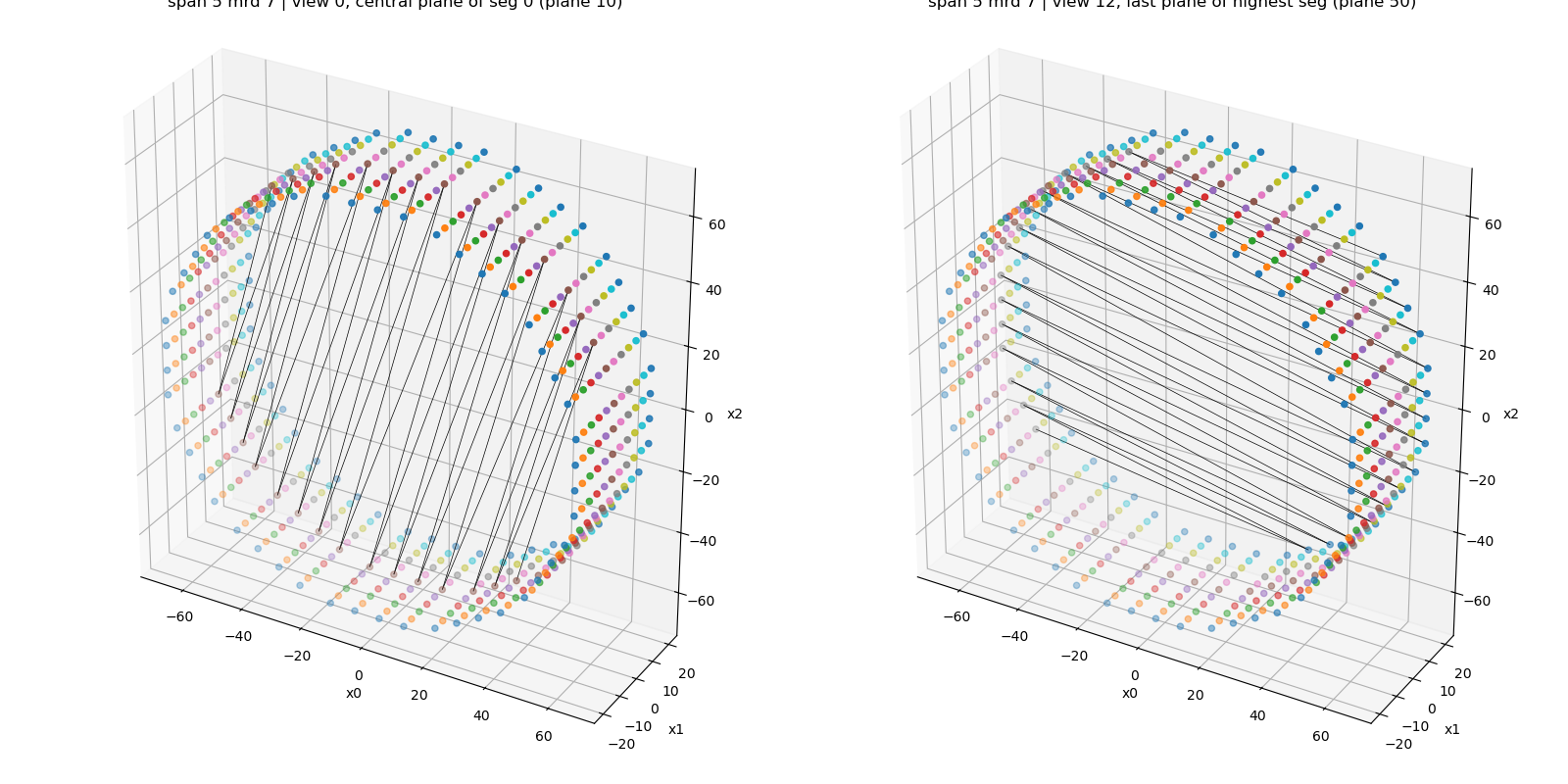

3D visualisation of two planes - span-5, max ring diff = 7

_p0_s5_mrd9 = _central_plane_seg0(lor_desc_s5_mrd9)
_ph_s5_mrd9 = _last_plane_highest_seg(lor_desc_s5_mrd9)

fig_3d2 = plt.figure(figsize=(16, 8), tight_layout=True)
ax3d2a = fig_3d2.add_subplot(121, projection="3d")
ax3d2b = fig_3d2.add_subplot(122, projection="3d")
scanner.show_lor_endpoints(ax3d2a)
lor_desc_s5_mrd9.show_views(
    ax3d2a,
    views=xp.asarray([0], device=dev),
    planes=xp.asarray([_p0_s5_mrd9], device=dev),
    lw=0.5,
    color="k",
)
ax3d2a.set_title(
    f"span {span} mrd {max_ring_difference} | view 0, central plane of seg 0 (plane {_p0_s5_mrd9})"
)
scanner.show_lor_endpoints(ax3d2b)
lor_desc_s5_mrd9.show_views(
    ax3d2b,
    views=xp.asarray([lor_desc_s5_mrd9.num_views // 2], device=dev),
    planes=xp.asarray([_ph_s5_mrd9], device=dev),
    lw=0.5,
    color="k",
)
ax3d2b.set_title(
    f"span {span} mrd {max_ring_difference} | view {lor_desc_s5_mrd9.num_views // 2}, last plane of highest seg (plane {_ph_s5_mrd9})"
)
fig_3d2.show()
