Michelograms and axial sinogram compression

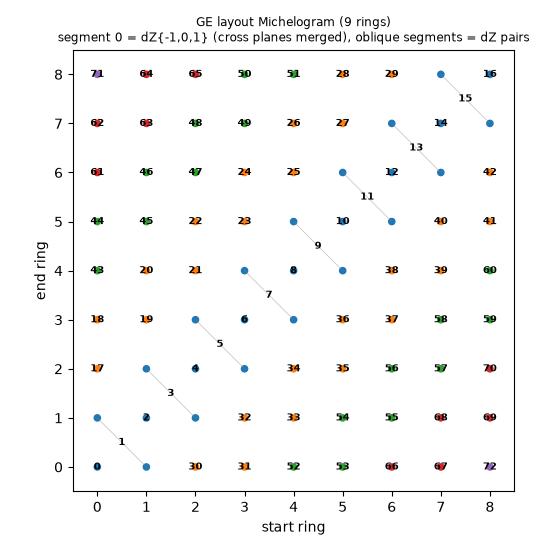

A Michelogram is a diagram of which ring pairs (s, e) form valid coincidences in a cylindrical PET scanner, and how they are grouped into sinogram planes under Siemens / STIR axial compression conventions. Ring pairs are sorted by segment (a function of the ring difference rd = e - s) and, within each segment, by axial midpoint s + e.

This example introduces

• Michelogram – captures the segment / axial-position layout in pure integer space, independently of any scanner geometry;

• SinogramAxialCompressionOperator – the linear operator that uses a Michelogram to compress a span-1 sinogram into a higher-span sinogram by summing the ring-pair sinograms that fold into the same compressed plane.

import numpy as np
import matplotlib.pyplot as plt

import parallelproj.pet_scanners
import parallelproj.pet_lors
import parallelproj.projectors
from parallelproj import to_numpy_array

from array_utils import suggest_array_backend_and_device

# To use a specific backend and/or device, replace the None arguments, e.g.:
#   xp, dev = suggest_array_backend_and_device(backend="numpy", dev="cpu") or by setting xp and dev manually
xp, dev = suggest_array_backend_and_device(None, None)

Using array API: array_api_compat.torch, device: cpu

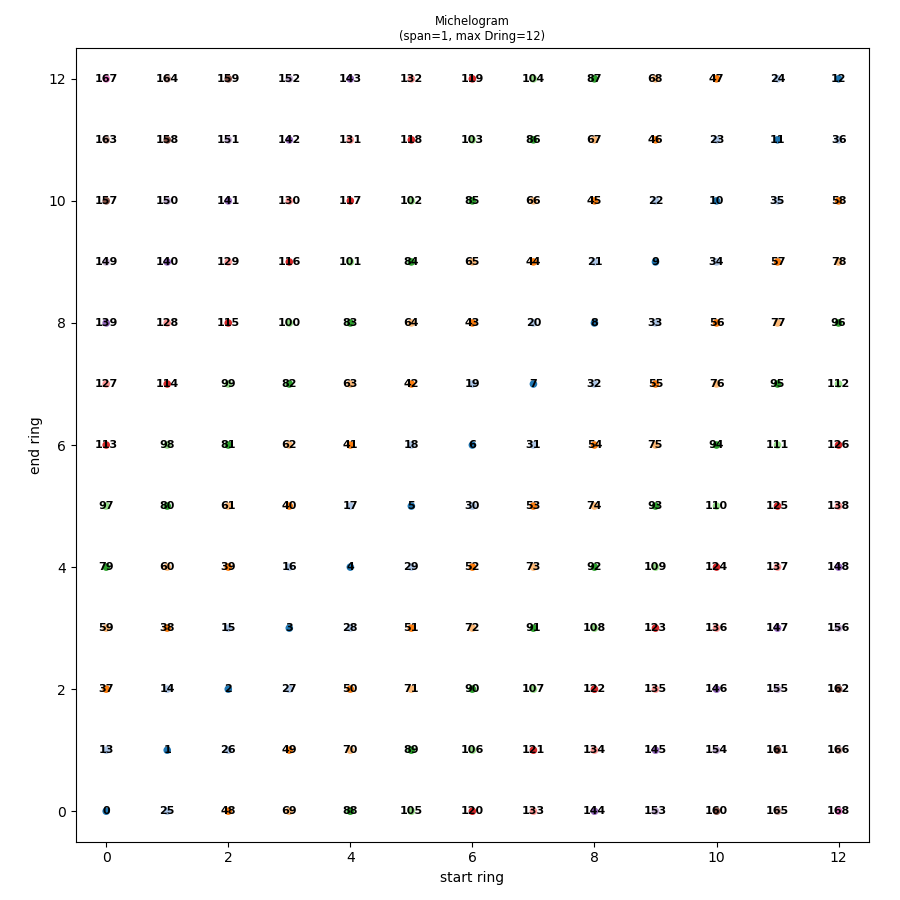

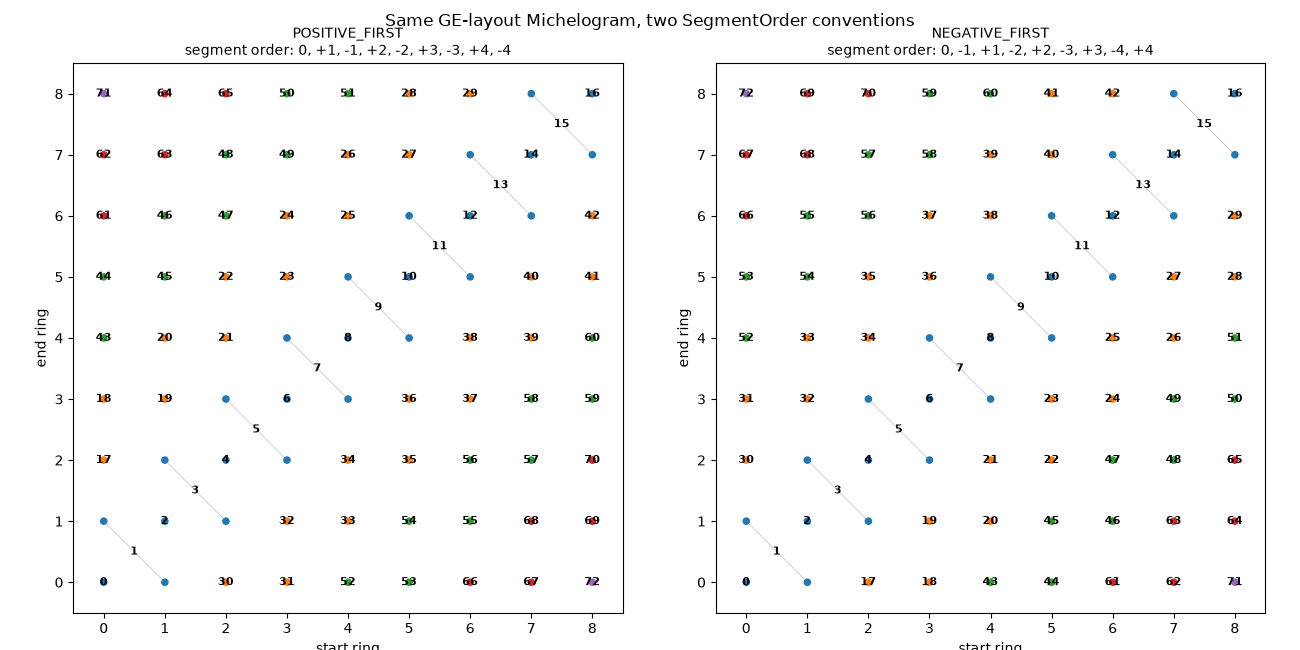

A Michelogram, standalone

A Michelogram is built from three integers:

• num_rings – the number of detector rings,

• max_ring_difference – the maximum |e - s| considered,

• span – an odd axial compression factor (1 = no compression).

It knows nothing about ring z-positions or scanner radius – it is a combinatorial object describing the (segment, axial midpoint) layout of sinogram planes. Each point in the Michelogram plot is one valid ring pair (start_ring, end_ring), coloured by |segment|; numerals annotate the resulting sinogram plane index.

num_rings = 13

m_span1 = parallelproj.pet_lors.Michelogram(
    num_rings=num_rings,
    max_ring_difference=num_rings - 1,
    span=1,
)

print(repr(m_span1))
print(f"num_planes       = {m_span1.num_planes}")
print(f"max_multiplicity = {m_span1.max_multiplicity}")

fig, ax = plt.subplots(figsize=(9, 9), tight_layout=True)
m_span1.show(ax, plane_index_fontsize=8)
fig.show()

Michelogram(num_rings=13, max_ring_difference=12, span=1)
num_planes       = 169
max_multiplicity = 1

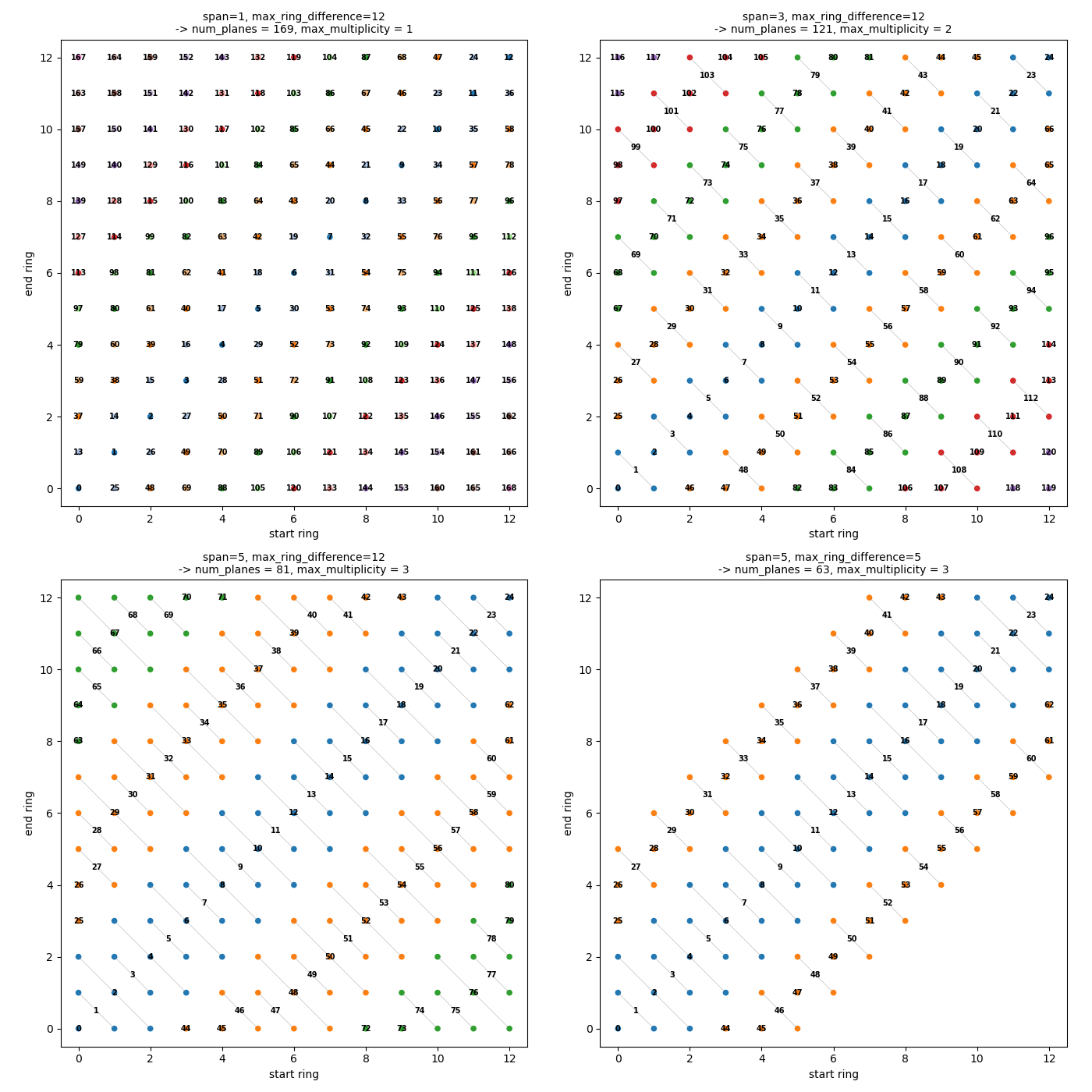

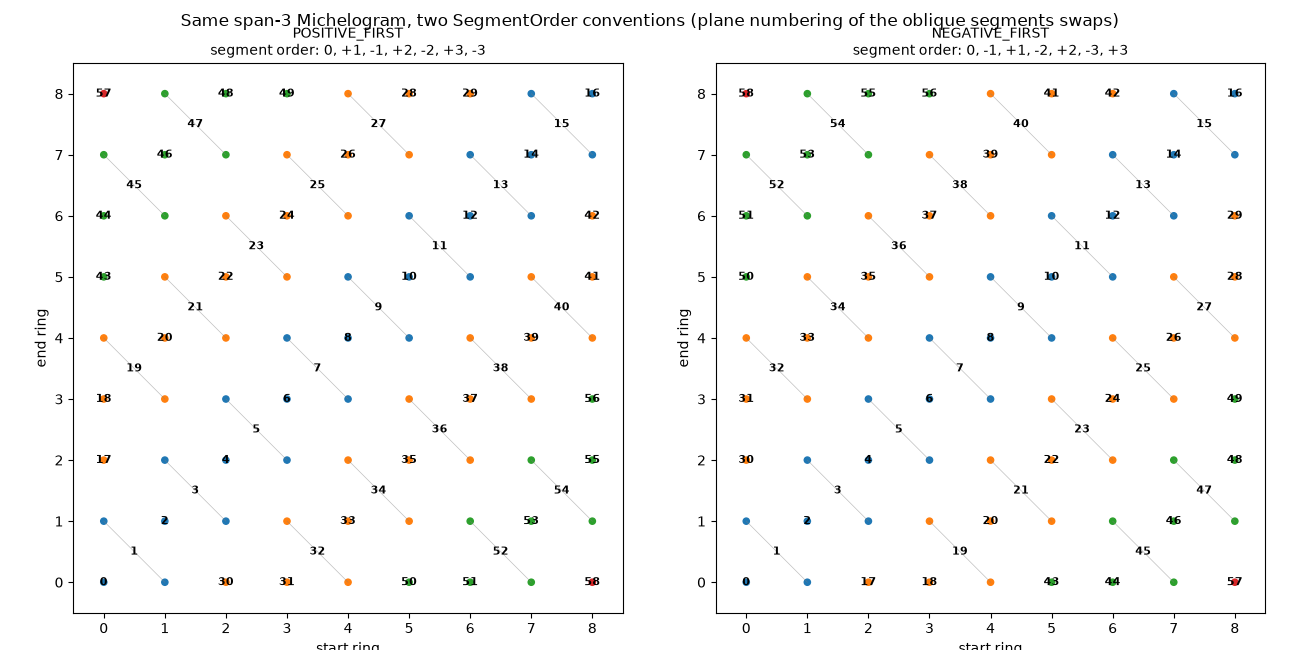

Effect of span and max_ring_difference

Increasing the span merges ring pairs that share both a segment and an axial midpoint into one sinogram plane. In the Michelogram plot, merged ring pairs are connected by thin grey merge lines — visually, each grey line collapses into one plane index.

Restricting the max_ring_difference removes the outer segments entirely, shrinking the diagonal band of valid ring pairs.

configs = [
    (1, num_rings - 1),  # span=1, all ring differences
    (3, num_rings - 1),  # span=3, all ring differences
    (5, num_rings - 1),  # span=5, all ring differences
    (5, 5),  # span=5, max_ring_difference restricted
]

fig, axes = plt.subplots(2, 2, figsize=(14, 14), tight_layout=True)
for ax, (span, mrd) in zip(axes.flat, configs):
    m = parallelproj.pet_lors.Michelogram(
        num_rings=num_rings,
        max_ring_difference=mrd,
        span=span,
    )
    m.show(ax, plane_index_fontsize=7)
    ax.set_title(
        f"span={span}, max_ring_difference={mrd}\n"
        f"-> num_planes = {m.num_planes}, "
        f"max_multiplicity = {m.max_multiplicity}",
        fontsize="medium",
    )
fig.show()

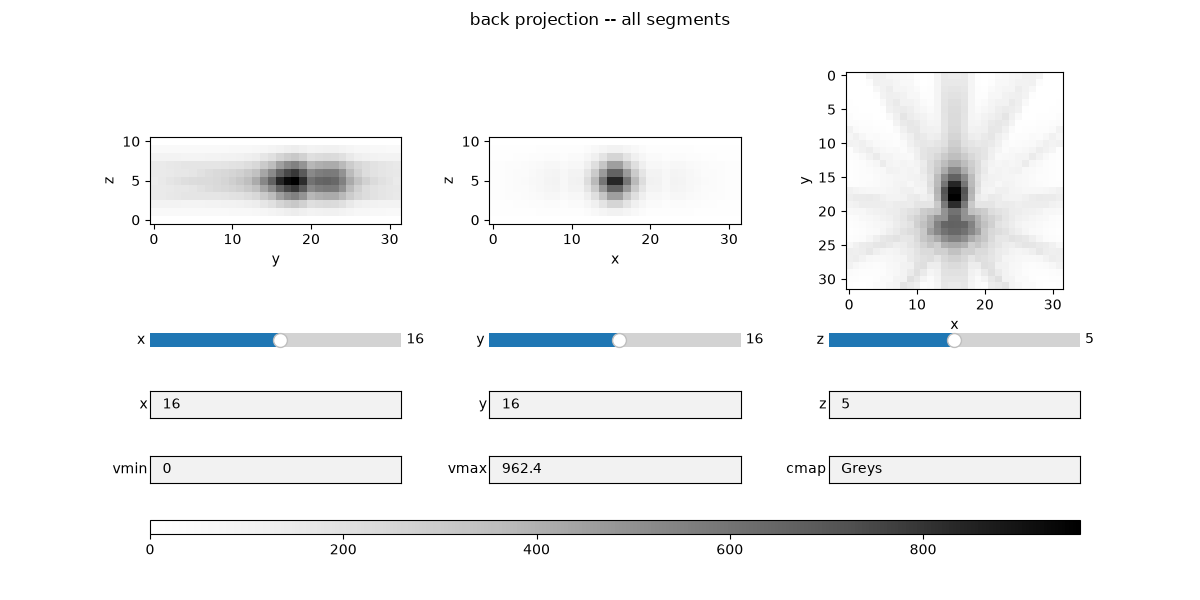

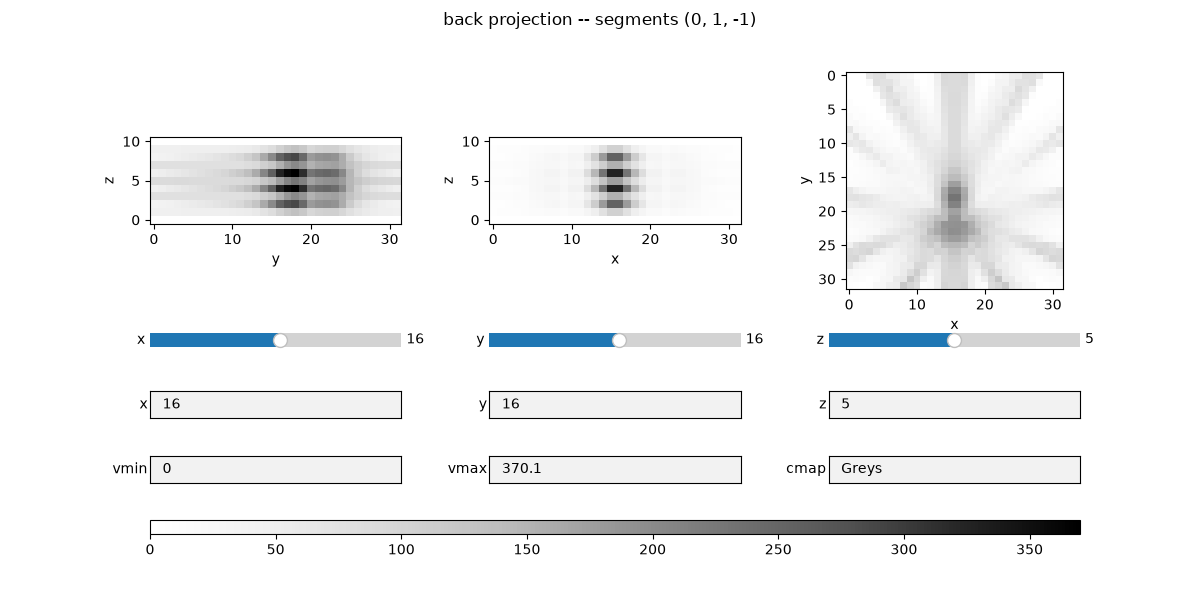

Axial Compression of span-1 sinograms to a span > 1

SinogramAxialCompressionOperator takes a span-1 LOR descriptor and a target odd span, and produces a linear operator that maps a span-1 sinogram to a span-target_span sinogram via

\[y_n = \sum_{p_1 \,\in\, \mathcal{G}(n)} x_{p_1}\,,\]

where \(\mathcal{G}(n)\) is the set of span-1 plane indices that fold into target plane \(n\). Its adjoint replicates each output value back to every input plane that contributed to it.

To see the operator in action, we set up a small 5-ring scanner, build a span-1 projector, forward-project a small Gaussian phantom, then compress the resulting span-1 sinogram to span 5.

num_rings_small = 5
target_span = 5

scanner_small = parallelproj.pet_scanners.RegularPolygonPETScannerGeometry(
    xp,
    dev,
    radius=65.0,
    num_sides=12,
    num_lor_endpoints_per_side=4,
    lor_spacing=4.0,
    ring_positions=xp.linspace(-4, 4, num_rings_small, device=dev),
    symmetry_axis=2,
)

# span-1 descriptor (no ring-difference constraint)
lor_s1 = parallelproj.pet_lors.RegularPolygonPETLORDescriptor(
    scanner_small,
    parallelproj.pet_lors.Michelogram(
        scanner_small.num_rings,
        max_ring_difference=num_rings_small - 1,
        span=1,
    ),
    radial_trim=10,
)

# span-1 forward projector
img_shape = (32, 32, 11)
voxel_size = (2.0, 2.0, 1.0)

proj_s1 = parallelproj.projectors.RegularPolygonPETProjector(
    lor_s1, img_shape=img_shape, voxel_size=voxel_size
)

# axial compression operator (span 1 -> span target_span)
op = parallelproj.pet_lors.SinogramAxialCompressionOperator(
    lor_s1, target_span=target_span
)

print(op)
print(f"span-1 sinogram shape: {proj_s1.out_shape}")
print(f"span-{target_span} sinogram shape: {op.out_shape}")

SinogramAxialCompressionOperator(target_span=5, mode='sum', num_planes: 25 -> 15, max_multiplicity=3)
span-1 sinogram shape: (29, 24, 25)
span-5 sinogram shape: (29, 24, 15)

A tiny 3-D Gaussian phantom, centered off-axis at world coordinates (x, y, z) = (0, 10, 0) mm with isotropic sigma = 4 mm. The image lives in numpy; we convert to xp for the projector.

ii, jj, kk = np.meshgrid(
    np.arange(img_shape[0]),
    np.arange(img_shape[1]),
    np.arange(img_shape[2]),
    indexing="ij",
)
x_w = (ii - (img_shape[0] - 1) / 2) * voxel_size[0]
y_w = (jj - (img_shape[1] - 1) / 2) * voxel_size[1]
z_w = (kk - (img_shape[2] - 1) / 2) * voxel_size[2]
phantom_np = np.exp(
    -((x_w - 0.0) ** 2 + (y_w - 10.0) ** 2 + (z_w - 0.0) ** 2) / (2 * 4.0**2)
).astype(np.float32)

phantom = xp.asarray(phantom_np, device=dev)

# Forward-project at span 1, then axially compress to span ``target_span``.
sino_s1 = proj_s1(phantom)
sino_sn = op(sino_s1)

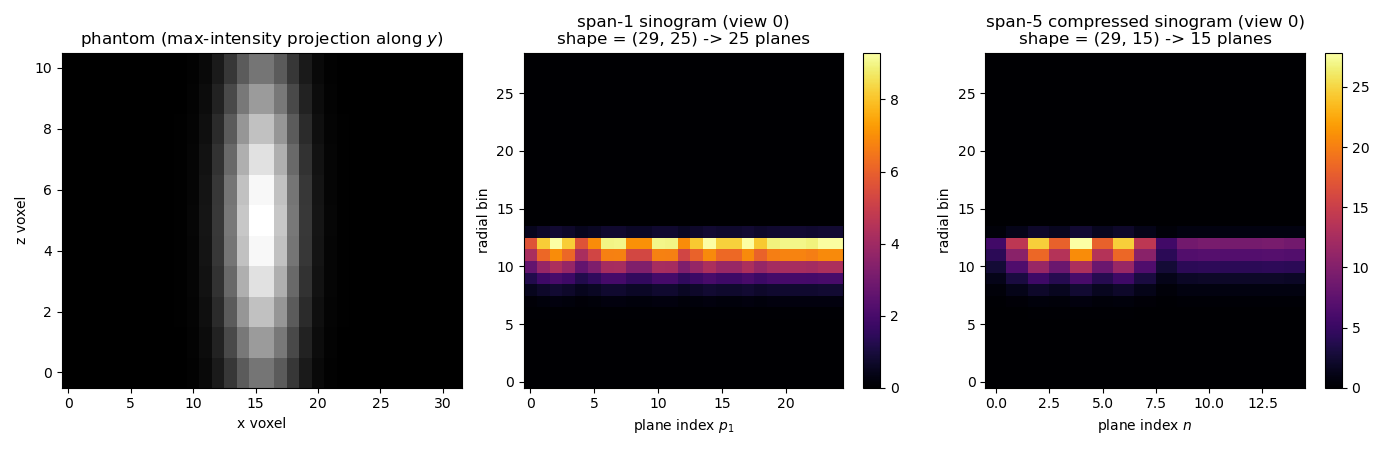

Visualise: a maximum-intensity projection of the 3-D phantom along the y axis (so the axial structure is visible), and the resulting span-1 and span-target_span sinograms for the same view. The plane axis of each sinogram encodes axial position; compressing reduces the number of plane bins (and increases per-bin values because of the summation).

view_idx = 0
s1_np = to_numpy_array(sino_s1)[:, view_idx, :]
sn_np = to_numpy_array(sino_sn)[:, view_idx, :]

fig, axes = plt.subplots(1, 3, figsize=(14, 4.5), tight_layout=True)

axes[0].imshow(phantom_np.max(axis=1).T, origin="lower", cmap="gray", aspect="auto")
axes[0].set_title("phantom (max-intensity projection along $y$)")
axes[0].set_xlabel("x voxel")
axes[0].set_ylabel("z voxel")

im1 = axes[1].imshow(s1_np, origin="lower", cmap="inferno", aspect="auto")
axes[1].set_title(
    f"span-1 sinogram (view {view_idx})\n"
    f"shape = {s1_np.shape} -> {op.num_planes_in} planes"
)
axes[1].set_xlabel("plane index $p_1$")
axes[1].set_ylabel("radial bin")
fig.colorbar(im1, ax=axes[1])

im2 = axes[2].imshow(sn_np, origin="lower", cmap="inferno", aspect="auto")
axes[2].set_title(
    f"span-{target_span} compressed sinogram (view {view_idx})\n"
    f"shape = {sn_np.shape} -> {op.num_planes_out} planes"
)
axes[2].set_xlabel("plane index $n$")
axes[2].set_ylabel("radial bin")
fig.colorbar(im2, ax=axes[2])

fig.show()

A direct span-\(S\) projector is not the same as compressing a span-1 sinogram ———————————————————————-

A natural question: instead of forward-projecting at span 1 and then applying the compression operator, can we just build a span-\(S\) RegularPolygonPETProjector directly? The answer is “yes, but they are not interchangeable”.

A span-\(S\) descriptor uses one averaged LOR per compressed plane (the geometric average of the constituent ring-pair LORs), so the direct projector traces one ray per output plane:

\[(\text{direct span-}S)_n \;=\; \int_{\,\text{LOR}_{\,\text{avg}}(n)} f(x)\, dx\,.\]

The compression operator, in contrast, sums every ring-pair line integral that folds into plane \(n\):

\[(\text{compressed})_n \;=\; \sum_{p_1 \,\in\, \mathcal{G}(n)} \int_{\,\text{LOR}(p_1)} f(x)\, dx\, \;\approx\; m_n \cdot (\text{direct span-}S)_n\,,\]

where \(m_n\) is the plane multiplicity. The compressed result therefore overcounts by a factor of \(m_n\) relative to the direct span-\(S\) projection.

Practical consequence. In a real reconstruction with spanned data one typically uses the (much faster) span-\(S\) projector — but the per-plane multiplicities must then be folded into the multiplicative sensitivity / normalisation sinogram so that the data model stays consistent.

lor_sn_direct = parallelproj.pet_lors.RegularPolygonPETLORDescriptor(
    scanner_small,
    parallelproj.pet_lors.Michelogram(
        scanner_small.num_rings,
        max_ring_difference=num_rings_small - 1,
        span=target_span,
    ),
    radial_trim=10,
)
proj_sn_direct = parallelproj.projectors.RegularPolygonPETProjector(
    lor_sn_direct, img_shape=img_shape, voxel_size=voxel_size
)

sino_sn_direct = proj_sn_direct(phantom)

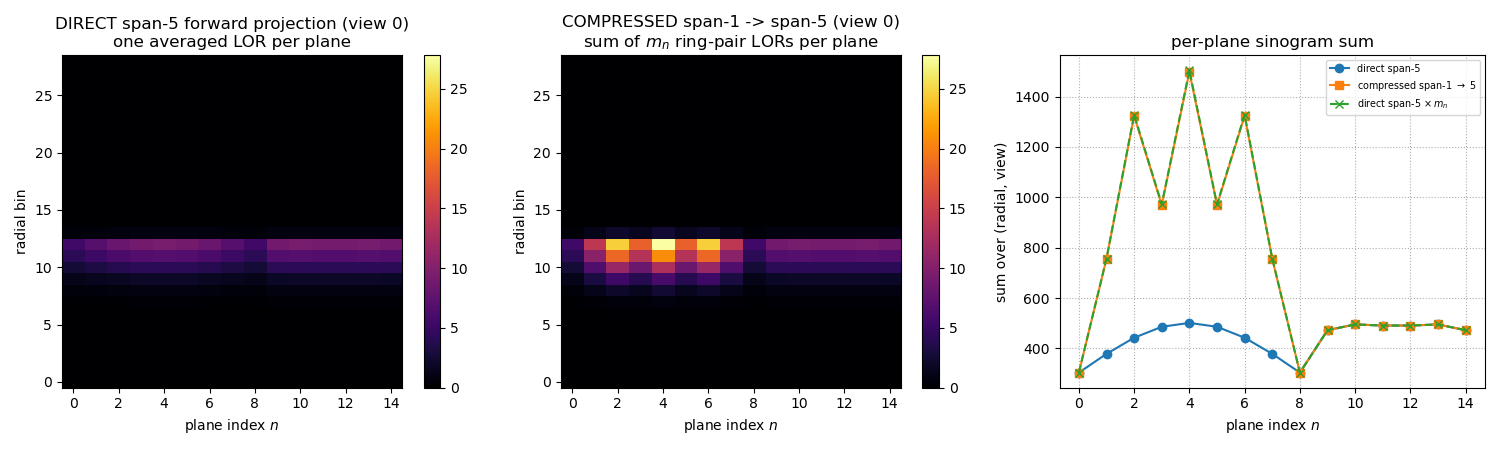

Visualise: the direct span-\(S\) sinogram, the compressed one, and a per-plane sum comparison that makes the \(m_n\) factor explicit.

sn_direct_np = to_numpy_array(sino_sn_direct)[:, view_idx, :]
mult_np = to_numpy_array(op.plane_multiplicity)
direct_per_plane = to_numpy_array(sino_sn_direct).sum(axis=(0, 1))
compressed_per_plane = to_numpy_array(sino_sn).sum(axis=(0, 1))

fig, axes = plt.subplots(1, 3, figsize=(15, 4.5), tight_layout=True)

vmax_panels = float(max(sn_direct_np.max(), sn_np.max()))

im_a = axes[0].imshow(
    sn_direct_np, origin="lower", cmap="inferno", vmax=vmax_panels, aspect="auto"
)
axes[0].set_title(
    f"DIRECT span-{target_span} forward projection (view {view_idx})\n"
    "one averaged LOR per plane"
)
axes[0].set_xlabel("plane index $n$")
axes[0].set_ylabel("radial bin")
fig.colorbar(im_a, ax=axes[0])

im_b = axes[1].imshow(
    sn_np, origin="lower", cmap="inferno", vmax=vmax_panels, aspect="auto"
)
axes[1].set_title(
    f"COMPRESSED span-1 -> span-{target_span} (view {view_idx})\n"
    "sum of $m_n$ ring-pair LORs per plane"
)
axes[1].set_xlabel("plane index $n$")
axes[1].set_ylabel("radial bin")
fig.colorbar(im_b, ax=axes[1])

axes[2].plot(direct_per_plane, "o-", label=f"direct span-{target_span}")
axes[2].plot(
    compressed_per_plane, "s-", label=f"compressed span-1 $\\to$ {target_span}"
)
axes[2].plot(
    direct_per_plane * mult_np,
    "x--",
    label=f"direct span-{target_span} $\\times\\, m_n$",
)
axes[2].set_xlabel("plane index $n$")
axes[2].set_ylabel("sum over (radial, view)")
axes[2].set_title("per-plane sinogram sum")
axes[2].legend(fontsize="x-small")
axes[2].grid(True, ls=":")

fig.show()

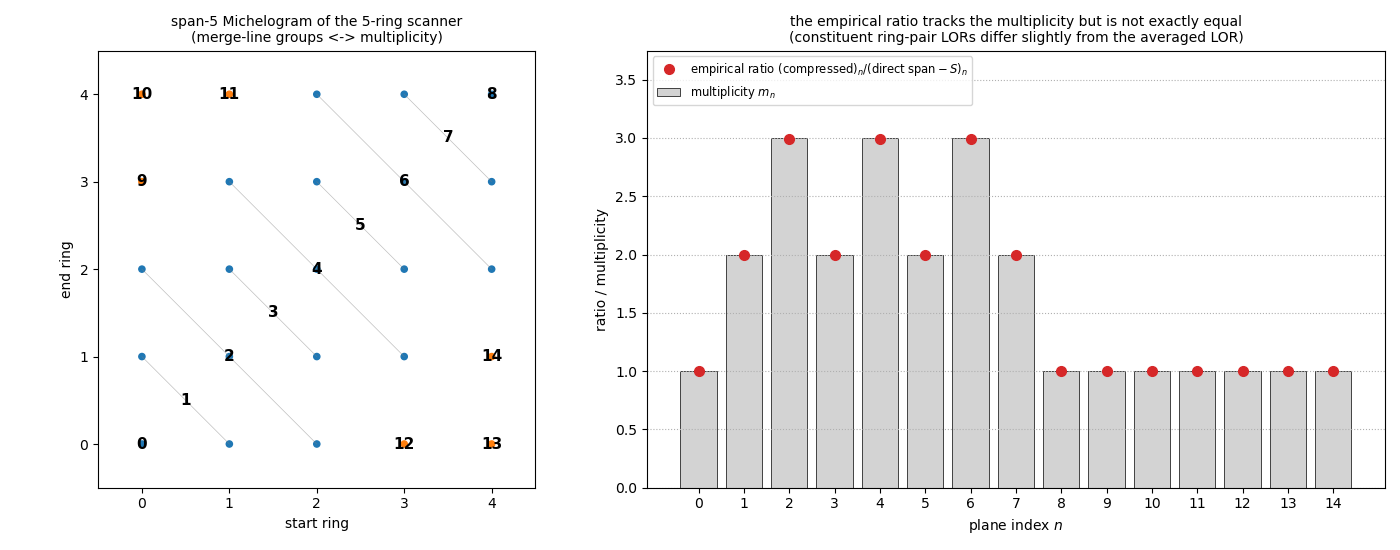

Ratio of per-plane sums vs multiplicity

Plotting the empirical ratio \((\text{compressed})_n / (\text{direct span-}S)_n\) against the plane multiplicity \(m_n\) makes the relationship explicit. The two are close but not identical: every ring-pair LOR within a compressed group has its own length and orientation, so its line integral through the phantom differs slightly from the integral through the single averaged LOR that the direct span-\(S\) projector uses. How “close” depends on (a) how strongly the constituent LORs differ within a compressed group and (b) how much axial structure the phantom has where those LORs diverge.

We plot the span-\(S\) Michelogram alongside the ratio so the multiplicity can be read off directly: each merge-line group (or each isolated dot) is one output plane, and the number of ring pairs in that group is \(m_n\).

# guard against divide-by-zero for planes that don't intersect the phantom
threshold = 1e-6 * float(direct_per_plane.max())
mask_valid = direct_per_plane > threshold
ratio = np.full_like(direct_per_plane, np.nan, dtype=float)
ratio[mask_valid] = compressed_per_plane[mask_valid] / direct_per_plane[mask_valid]

fig, axes = plt.subplots(
    1, 2, figsize=(14, 5.5), tight_layout=True, gridspec_kw={"width_ratios": [1, 1.4]}
)

# --- left: the span-S Michelogram of the 5-ring scanner ---
op.out_lor_descriptor.michelogram.show(axes[0], plane_index_fontsize=11)
axes[0].set_title(
    f"span-{target_span} Michelogram of the 5-ring scanner\n"
    f"(merge-line groups <-> multiplicity)",
    fontsize="medium",
)

# --- right: empirical ratio vs multiplicity bars ---
n_idx = np.arange(op.num_planes_out)
axes[1].bar(
    n_idx,
    mult_np,
    color="lightgray",
    edgecolor="black",
    lw=0.5,
    label="multiplicity $m_n$",
)
axes[1].plot(
    n_idx[mask_valid],
    ratio[mask_valid],
    "o",
    color="C3",
    ms=7,
    label=r"empirical ratio "
    r"$(\mathrm{compressed})_n / (\mathrm{direct\;span-}S)_n$",
)
axes[1].set_xlabel("plane index $n$")
axes[1].set_ylabel("ratio / multiplicity")
axes[1].set_title(
    "the empirical ratio tracks the multiplicity but is not exactly equal\n"
    "(constituent ring-pair LORs differ slightly from the averaged LOR)",
    fontsize="medium",
)
axes[1].set_xticks(n_idx)
axes[1].set_ylim(0, max(float(mult_np.max()), float(np.nanmax(ratio))) * 1.25)
axes[1].legend(loc="upper left", fontsize="small")
axes[1].grid(True, ls=":", axis="y")

fig.show()
